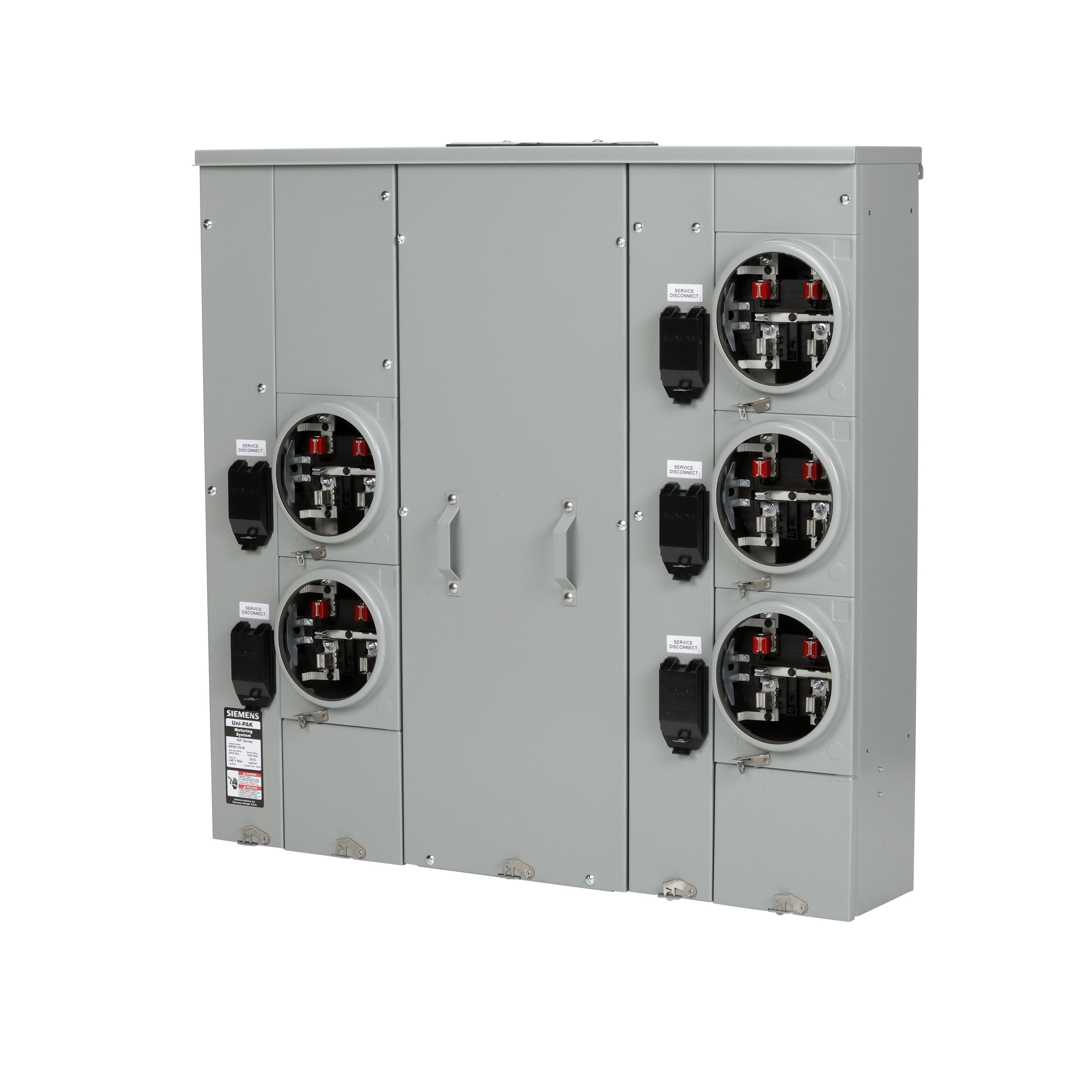

Siemens - Siemens WP6511RJB 120/240 VAC 600 Amp 1-Phase 3-Wire Overhead/Underground Feed Direction Meter Center
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 040892875706
Amperage - 600 Amp
Applications - SERVICEENTRANCEEQUIPMENT
Catalog Number - WP6511RJB
ERP_productname - SIEM WP6511RJB PAKMTR 600A 5G 1PH 125A 5J RLS HORN
Packaging
1 ea
EAN
00040892875706
Part #
338325
Catalog #
WP6511RJB
Commercial reference
WP6511RJB
12-Digit UPC:
040892875706
Amperage:
600 Amp
Applications:
SERVICEENTRANCEEQUIPMENT
Catalog Number:
WP6511RJB
ERP_productname:
SIEM WP6511RJB PAKMTR 600A 5G 1PH 125A 5J RLS HORN
Enclosure:
RINGLESS
Family Brand Name:
Siemens
Number of Phases:
1 Phase
Size:
5
Sub Brand:
Uni-PAK
Type:
METERSTACK
Voltage:
120/240 Volt
SoneparProductId:
SKU_US_26819075
Siemens Low Voltage s Multi-Family Metering Line of PAK Metering Standard 125A as part of the PAK Metering Standard 125A Group. Type UNI-PAK Features HORN BYPASS Appn GARDEN - STYLE Std UL-50,67,414 V. Rating 120/240V A. Rating 600A Phase 1PH Size 9.000x45.07 x 39.690 No. Of Cutouts 17 Cutout Size 1 x (1/2,3/4,1,1-1/4), 12 x (2-1/2,2 ,1-1/2,1-1/4,1 ), 2 x (4,3-1/2,3,2-1/2,2 ), 2X4 Cable Entry TOP OR BOTTOM FEED Terminal 3X2 STUDS. Insulated.Appn . Wall Mounted. Enclosure RINGLESS
