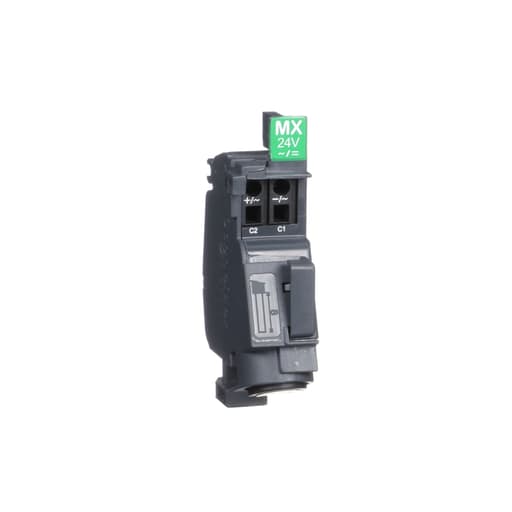

Square-D / Schneider - CIRCUIT BREAKER SHUNT TRIP 24V AC/DC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606485413047
Actuator - N/A
Applications - SHUNT TRIP (MX)
Catalog Number - LV426841
Country of Origin - USA
Packaging
1 ea
EAN
03606485413044
Part #
190385
Catalog #
LV426841
Commercial reference
LV426841
12-Digit UPC:
606485413047
Actuator:
N/A
Applications:
SHUNT TRIP (MX)
Catalog Number:
LV426841
Country of Origin:
USA
ERP_productname:
SQD LV426841 CIRCUIT BREAKER SHUNT TRIP 24V AC/DC
Enclosure:
N/A
Family Brand Name:
Schneider Electric
Frame:
N/A
Mounting Type:
Clip-On
Sub Brand:
SQUARE D
Tc Connection:
N/A
Trip Type:
N/A
Type:
ACCESSORY
Voltage:
24 VAC//VDC
SoneparProductId:
SKU_US_27172887
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
