Square-D / Schneider - Schneider GV2P06KD09G7 Motor Starte
Login or create an account to check prices & order
Essential specifications
Catalog Number - GV2P06KD09G7
Depths - 86 mm
ERP_productname - SQD GV2P06KD09G7 MOTOR STARTER KIT, TESYS, LC1D09G7 CONTACTOR, GV2P06 MOTOR STARTER PROTECTOR, 120 VAC 50/60 HZ COIL, 1 TO 1.6A TRIP
Family Brand Name - Square D
Heights - 77 mm
Packaging
1 ea
EAN
03606486287804
Part #
332553
Catalog #
GV2P06KD09G7
Commercial reference
GV2P06KD09G7
Catalog Number:
GV2P06KD09G7
Depths:
86 mm
ERP_productname:
SQD GV2P06KD09G7 MOTOR STARTER KIT, TESYS, LC1D09G7 CONTACTOR, GV2P06 MOTOR STARTER PROTECTOR, 120 VAC 50/60 HZ COIL, 1 TO 1.6A TRIP
Family Brand Name:
Square D
Heights:
77 mm
Impedance:
2.5 MOhm - Ith 25 A 50 Hz Power Circuit
Widths:
45 mm
SoneparProductId:
SKU_US_376892948

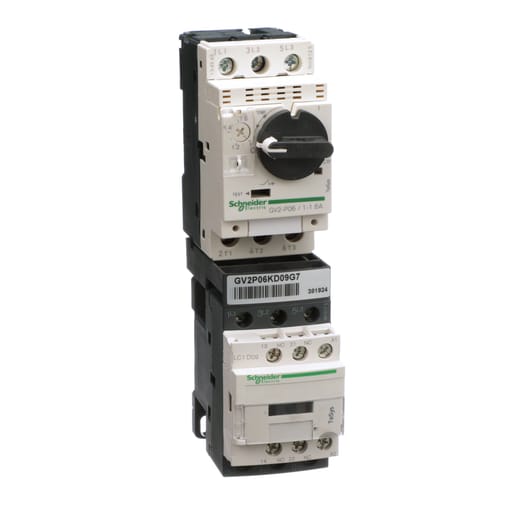

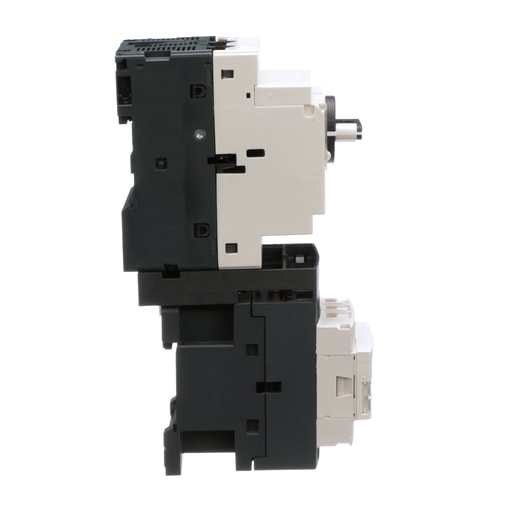

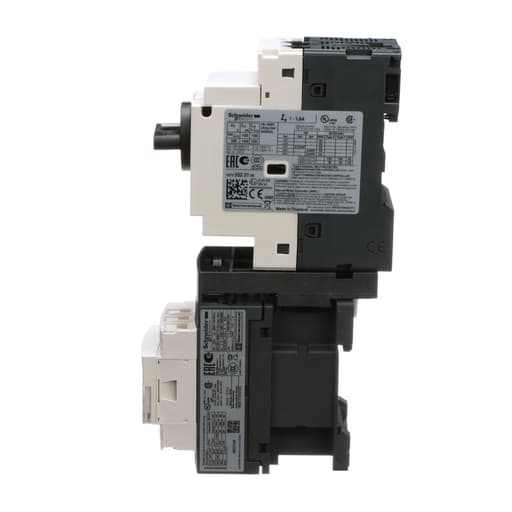

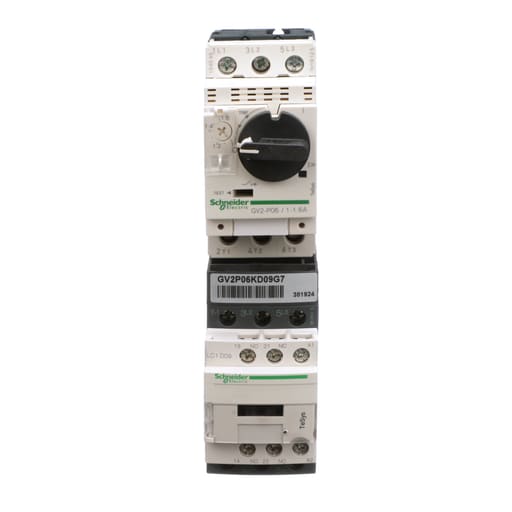

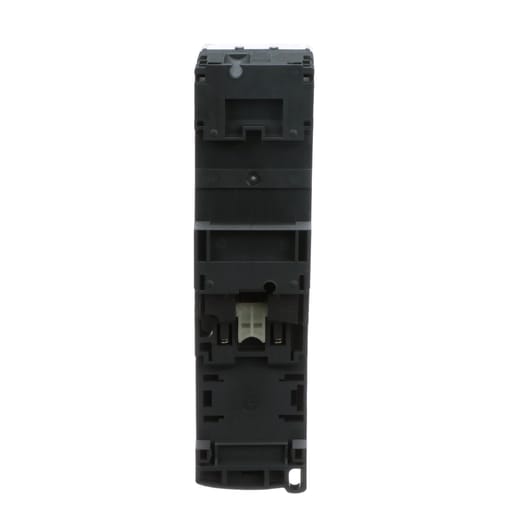

TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P06 motor starter protector and a LC1D09G7 IEC contactor assembled together into one device. The GV2P06 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P06 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 1.0 to 1.6 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.
