Square-D / Schneider - Schneider GV2P20KD25B7 Motor Starte
Login or create an account to check prices & order
Essential specifications
Catalog Number - GV2P20KD25B7
Depths - 92 mm
ERP_productname - SQD GV2P20KD25B7 MOTOR STARTER 13A 24VAC
Family Brand Name - Square D
Heights - 85 mm
Packaging
1 ea
EAN
03606486287972
Part #
235307
Catalog #
GV2P20KD25B7
Commercial reference
GV2P20KD25B7
Catalog Number:
GV2P20KD25B7
Depths:
92 mm
ERP_productname:
SQD GV2P20KD25B7 MOTOR STARTER 13A 24VAC
Family Brand Name:
Square D
Heights:
85 mm
Impedance:
2 MOhm - Ith 40 A 50 Hz Power Circuit
Widths:
45 mm
SoneparProductId:
SKU_US_390483853

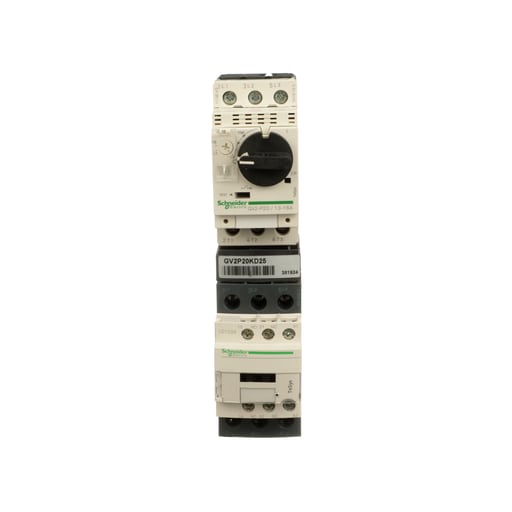

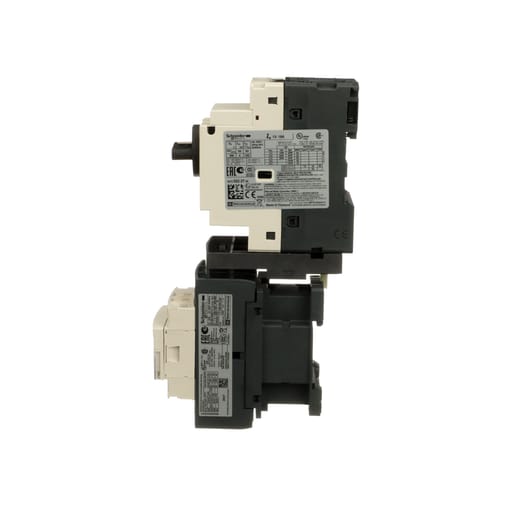

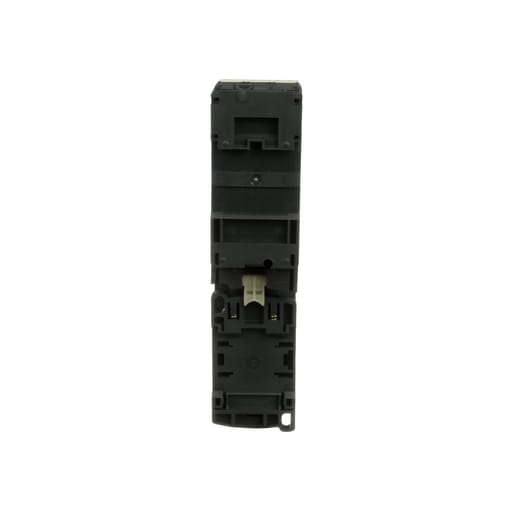

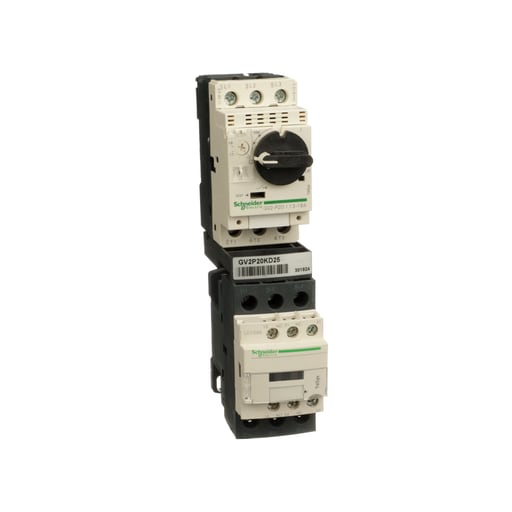

TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P20 motor starter protector and a LC1D25B7 IEC contactor assembled together into one device. The GV2P20 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P20 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 13.0 to 18.0 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.
