Square-D / Schneider - Schneider GV2P21KD25G7 Motor Starte
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606486288019
Catalog Number - GV2P21KD25G7
Depths - 92 mm
ERP_productname - SQD GV2P21KD25G7 MOTOR STARTER 17 AMP 120VAC
Family Brand Name - Square D
Packaging
1 ea
EAN
03606486288016
Part #
155272
Catalog #
GV2P21KD25G7
Commercial reference
GV2P21KD25G7
12-Digit UPC:
606486288019
Catalog Number:
GV2P21KD25G7
Depths:
92 mm
ERP_productname:
SQD GV2P21KD25G7 MOTOR STARTER 17 AMP 120VAC
Family Brand Name:
Square D
Heights:
85 mm
Impedance:
2 MOhm - Ith 40 A 50 Hz Power Circuit
Widths:
45 mm
SoneparProductId:
SKU_US_192481309

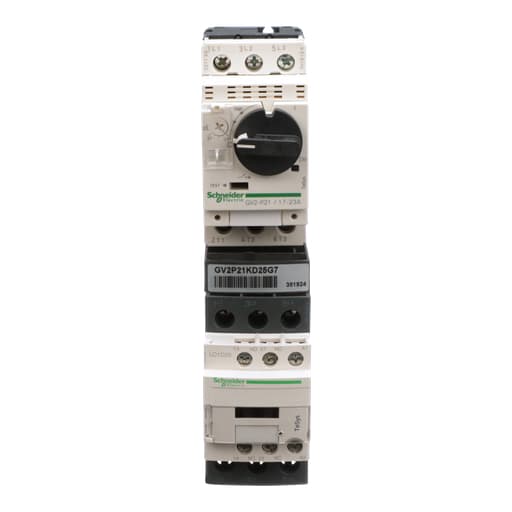

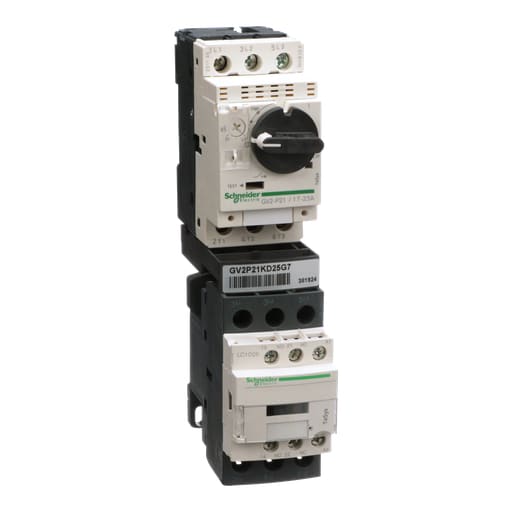

TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P21 motor starter protector and a LC1D25G7 IEC contactor assembled together into one device. The GV2P21 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P21 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 17.0 to 23.0 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.
