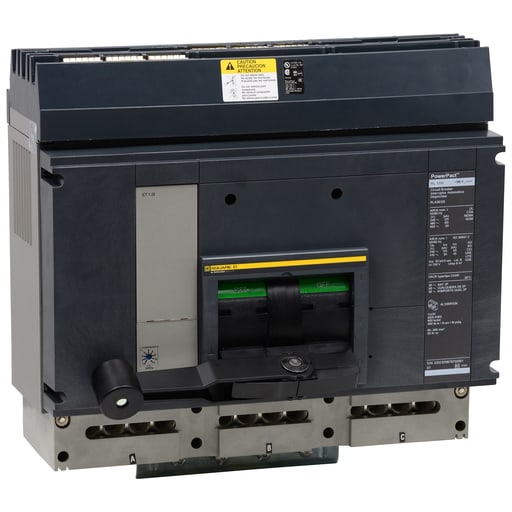

Square-D / Schneider - Schneider RJA36100CU33A Circuit bre

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606486287012

  • Catalog Number - RJA36100CU33A

  • Country of Origin - USA

  • Depths - 13.78 Inch

  • ERP_productname - SQD RJA36100CU33A 3P 1000A CB

Packaging

  • 1 ea

EAN

03606486287019

Part #

394087

Catalog #

RJA36100CU33A

Commercial reference

RJA36100CU33A

12-Digit UPC:

606486287012

Catalog Number:

RJA36100CU33A

Country of Origin:

USA

Depths:

13.78 Inch

ERP_productname:

SQD RJA36100CU33A 3P 1000A CB

Family Brand Name:

Square D

Heights:

13.38 Inch

Mounting Type:

I-Line Bracket)

Voltage:

600 Volt

Widths:

14.96 in

SoneparProductId:

SKU_US_88017936

PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. The circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. Compatible Products: S29450; S29452; S32631; MPRPAF; S33929; S33997; S33998
