Square-D / Schneider - SQD 1009788A Meter socket, ringless

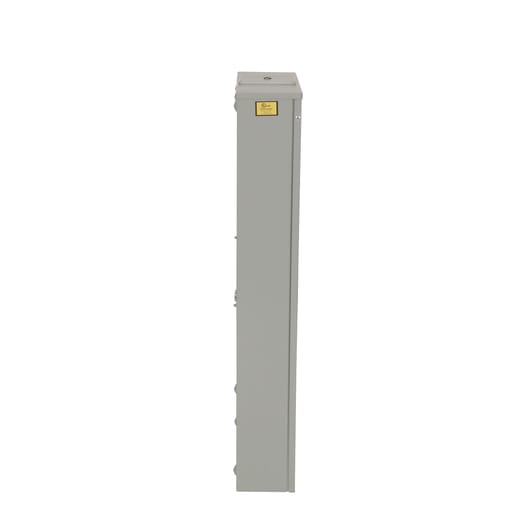

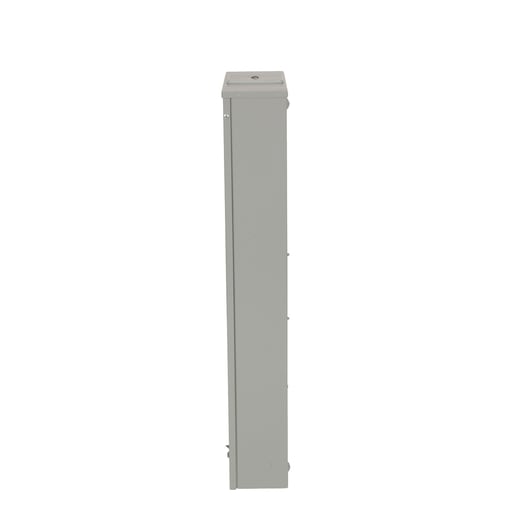

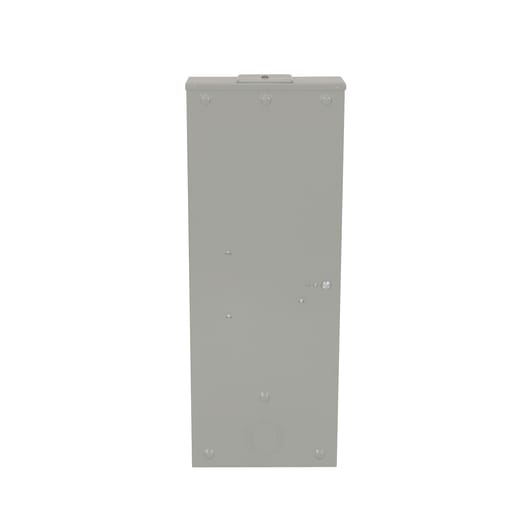

Square D individual meter socket is a single phase, ringless meter socket device for single family residential construction. This socket underground feed has provisions to feed a downstream main lug load center, a main breaker load center, or an individually enclsoed service disconnect. This socket is an A-L ACPL closing plate type with 4 jaws and a lever bypass, and a current rating of 320A. This unit has a rated operational voltage of 600 VAC and a short circuit current rating of 10,000 RMS symmetrical amperes. It also has a NEMA type 3R enclosure that is supplied with a bonded neutral, and hub opening in top endwall. This hub opening will require the use of a bolt on hub or closing plate. Unit is UL listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A250L; A300L; A200L; A400L; ACPL; AAP; ARP00129; ARP00427; 2920910001; ARP00026
