Square-D / Schneider - SQD 199ABX-14 Power relay, SE Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901148968
Catalog Number - 199ABX14
Country of Origin - China
ERP_productname - SQD 199ABX14 OPEN PWR RY, DPDT, 40A 120VAC
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606480275692
Part #
219648
Catalog #
199ABX14
Commercial reference
199ABX14
12-Digit UPC:
785901148968
Catalog Number:
199ABX14
Country of Origin:
China
ERP_productname:
SQD 199ABX14 OPEN PWR RY, DPDT, 40A 120VAC
Family Brand Name:
Schneider Electric
Input Voltage:
120 V
Length:
8 mm
Short Circuit Current Ratng:
3 kA
SoneparProductId:
SKU_US_198816762

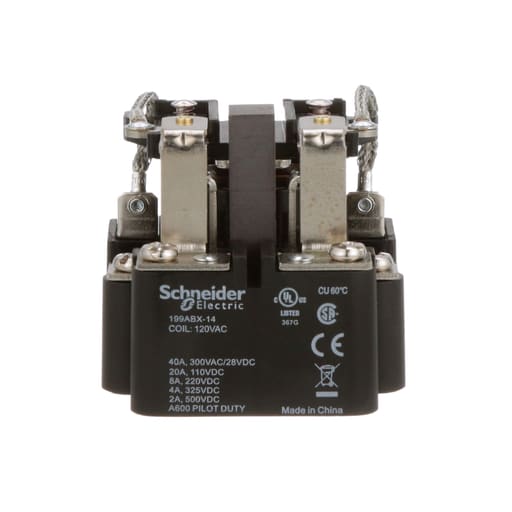

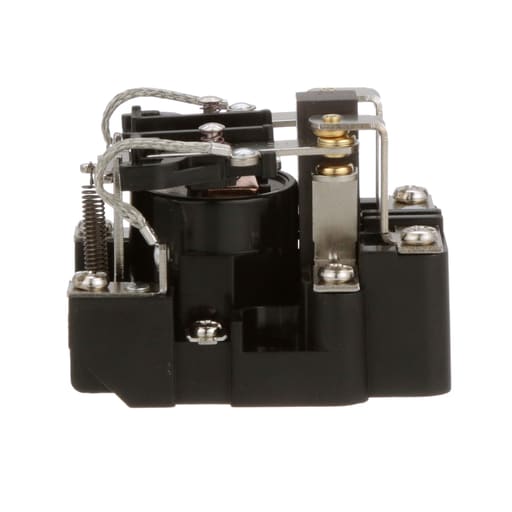

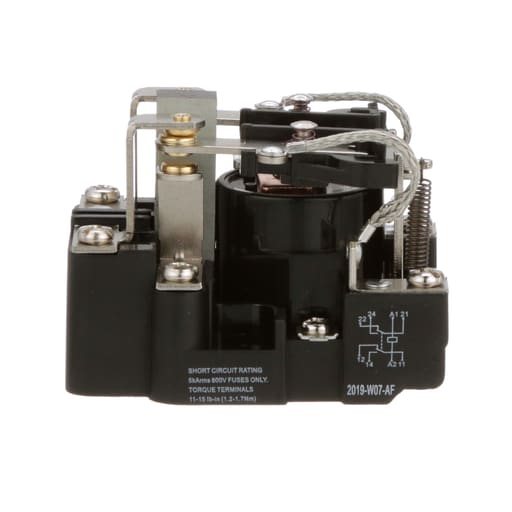

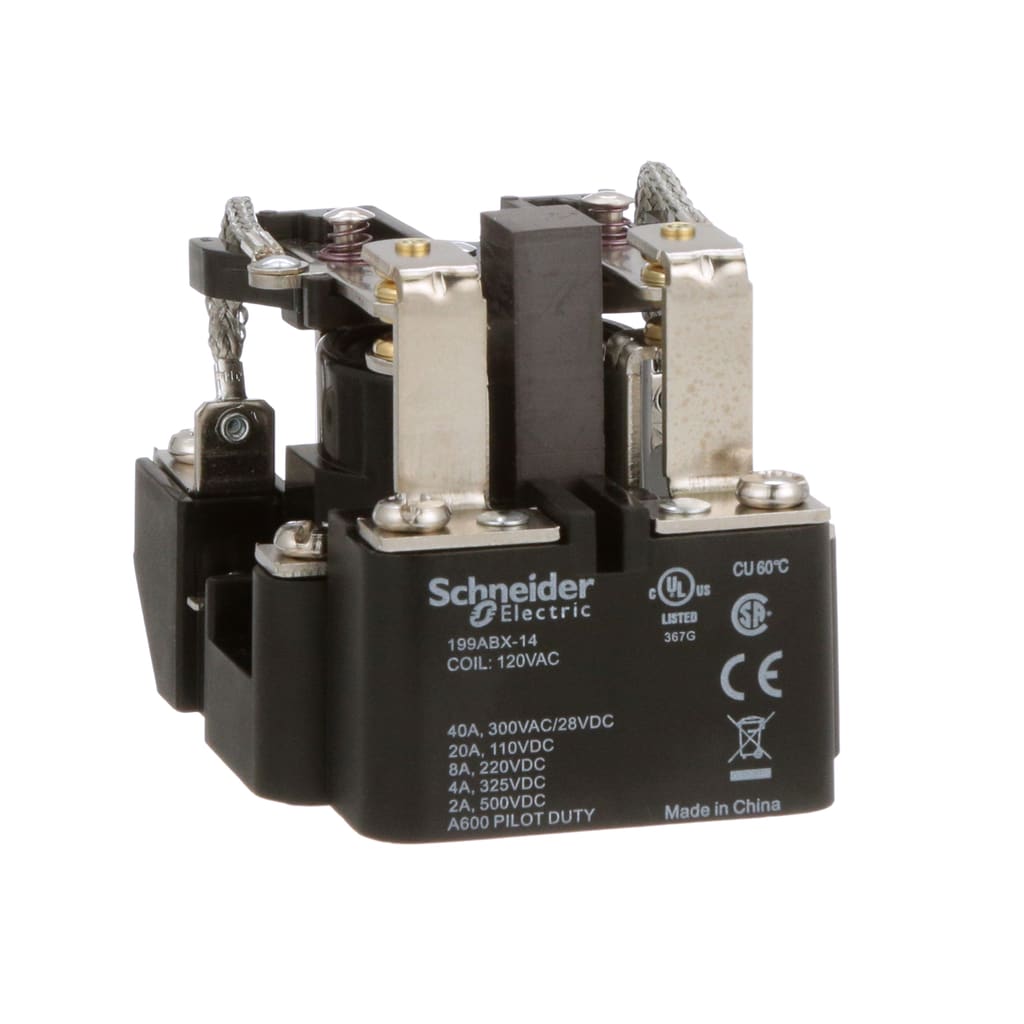

The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 120VAC with DPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 50-1289-P
