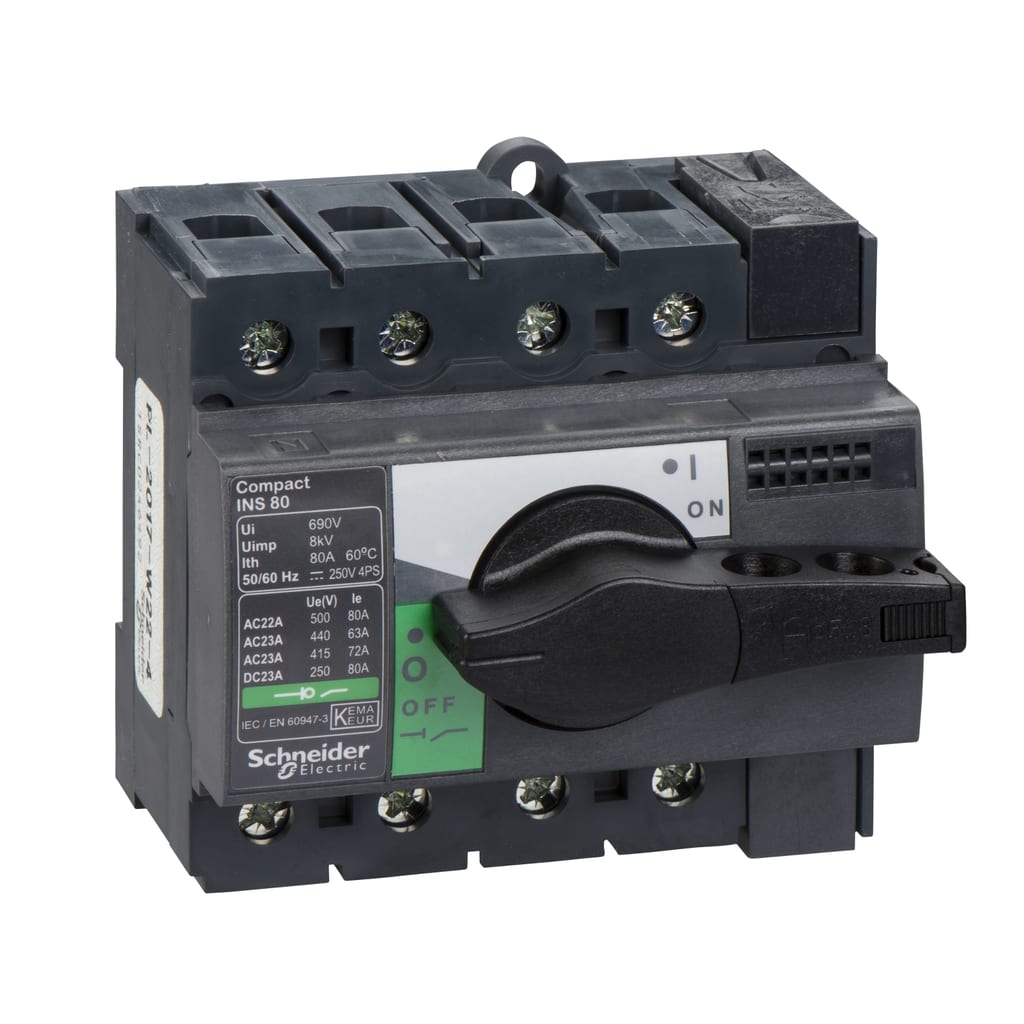

Square-D / Schneider - SQD 28905 NON-AUTOMATIC SWITCH INTERPACT INS80 4P

12-Digit UPC:

303430289053

Actuator:

ROTARY HANDLE

Amperage:

AC-23A 40 Amp AC 50/60 HZ 500 V-DC-23A 80 Amp DC 125 V 2 POLES IN SERIES-DC-22A 80 Amp DC 250 V 4 POLES IN SERIES-DC-23A 80 Amp DC 250 V 4 POLES IN SERIES-AC-23A 63 Amp AC 50/60 HZ 440/480 V-AC-22A 80 Amp AC 50/60 HZ 220/240 V-AC-22A 80 Amp AC 50/60 HZ 380/415 V-AC-22A 80 Amp AC 50/60 HZ 440/480 V-AC-22A 80 Amp AC 50/60 HZ 500 V-AC-23A 72 Amp AC 50/60 HZ 380/415 V-AC-23A 80 Amp AC 50/60 HZ 220/240 V-DC-22A 80 Amp DC 125 V 2 POLES IN SERIES

Applications:

INS40...160

Catalog Number:

28905

Country of Origin:

USA

Depths:

62.5 mm

ERP_productname:

SQD 28905 NON-AUTOMATIC SWITCH INTERPACT INS80 4P

Family Brand Name:

Schneider Electric

Heights:

85 mm

Length:

62.5 mm

Mounting Type:

Fixed

Number of Poles:

4 Pole

Sub Brand:

COMPACT INS,COMPACT INS80,COMPACT INS80

Type:

SWITCH DISCONNECTOR

Voltage:

500 Volt AC 50/60 HZ-250 Volt DC

Widths:

90 mm

SoneparProductId:

SKU_US_192476870
