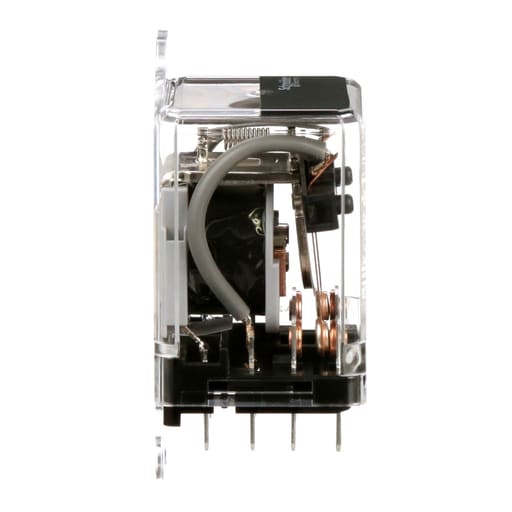

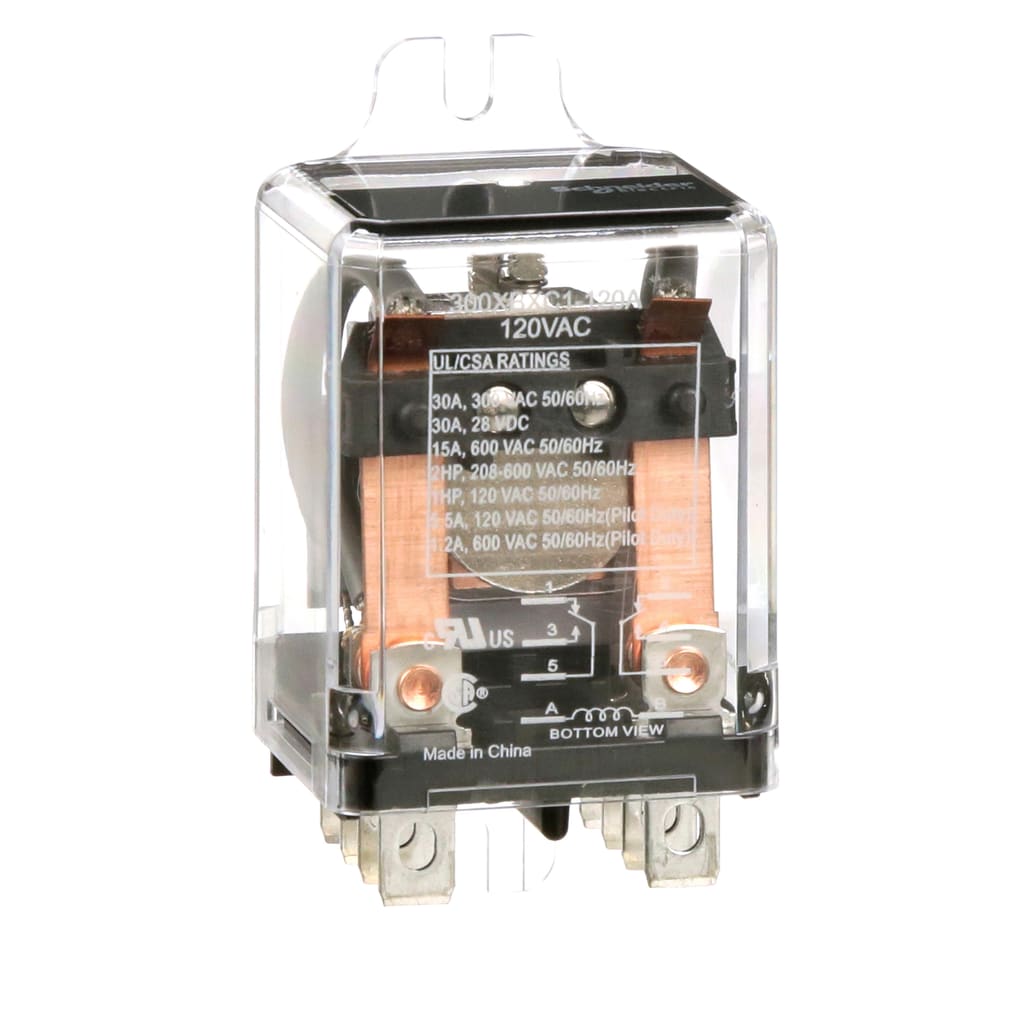

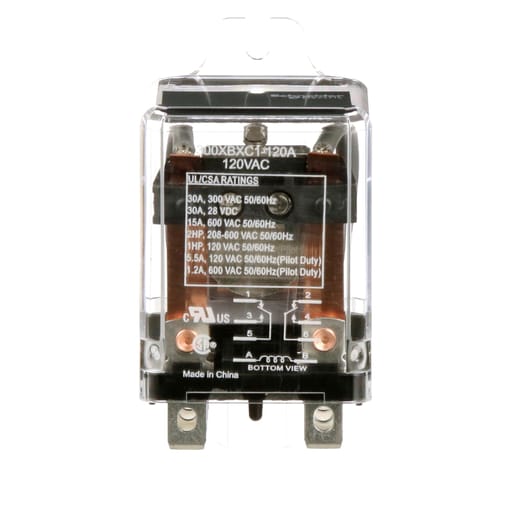

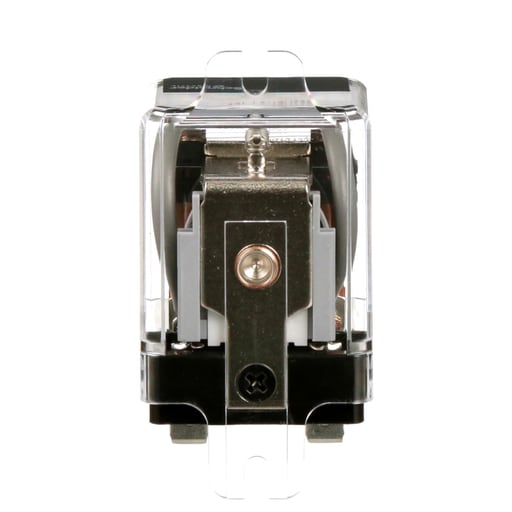

Square-D / Schneider - SQD 300XBXC1-120A Power Relay, DPDT

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901181101

  • Catalog Number - 300XBXC1120A

  • Country of Origin - China

  • Depths - 34.5 mm

  • ERP_productname - SQD 300XBXC1120A 300 POWER RELAY DPDT 30A 110/120VAC

Packaging

  • 1 ea

EAN

03606480276286

Part #

134871

Catalog #

300XBXC1120A

Commercial reference

300XBXC1120A

12-Digit UPC:

785901181101

Catalog Number:

300XBXC1120A

Country of Origin:

China

Depths:

34.5 mm

ERP_productname:

SQD 300XBXC1120A 300 POWER RELAY DPDT 30A 110/120VAC

Family Brand Name:

Schneider Electric

Heights:

73.6 mm

Input Voltage:

120 V

Widths:

37.8 mm

SoneparProductId:

SKU_US_192392406

This product belongs to Schneider Electric, an offer of 300 series power relay range. It offers a high contact rating with a magnetic blowout of 30A at 300V AC. This product can hold motor loads up to 2HP at 208V to 600V AC with a nominal coil voltage of 120V AC. Its maximum switching voltage of 600V and improved dielectric strength of 4000V(rms) between mutually isolated conductive elements and frame make it suitable for high-power switching applications. It offers a DPDT (double pole double throw) contact configuration with increased space between stationary contact terminals. This makes it an ideal solution for various application requirements and also enables the use of fully booted Quick Connect terminals. Its dimensions are 37.8mm (width) x 73.6mm (height) x 34.5mm (depth), and it weighs 85g. It has a 2mm contact gap, 8mm creepage, and clearance for mounting that meets international requirements. Its wide range of accessories and the side flange mounting option help increase design and installation flexibility. It complies with directives such as RoHS, WEEE, and REACh relating to environmental protection. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: 300XBXC1-24A; 300XBXC1-240A
