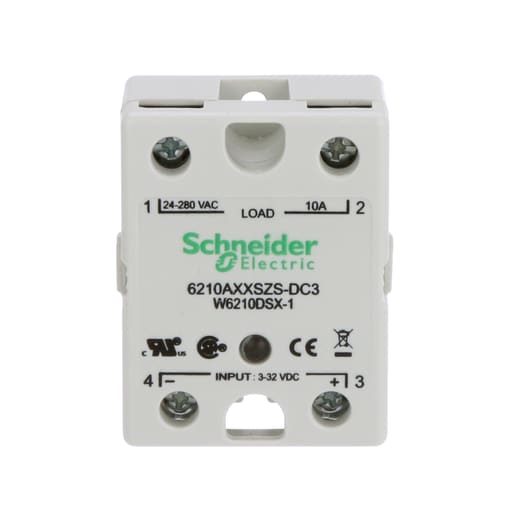

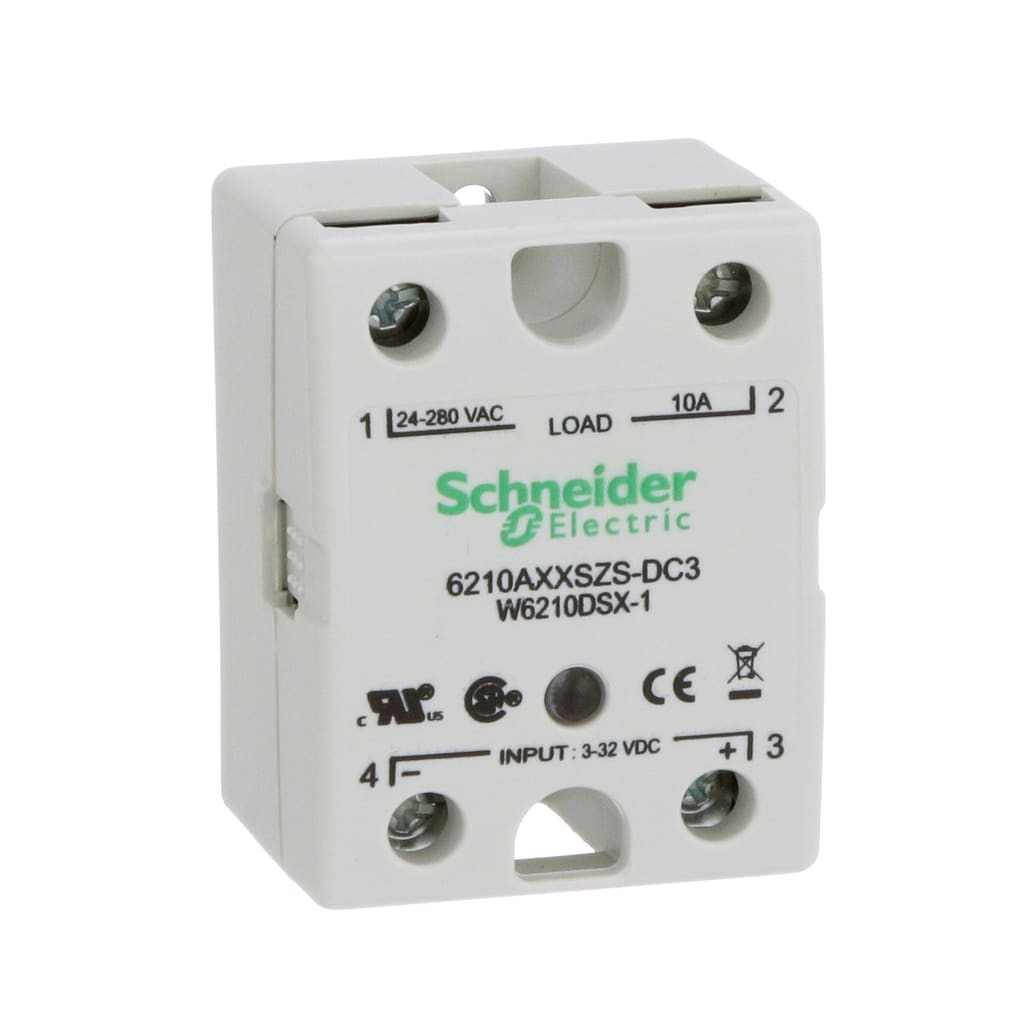

Square-D / Schneider - SQD 6210AXXSZS-DC3 Relay, SE Relays
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901153771
Catalog Number - 6210AXXSZSDC3
Depths - 58.4 mm
ERP_productname - SQD 6210AXXSZSDC3 SSR 1-NO 10A 3-32 VDC PANEL MOUNT
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606480277269
Part #
110957
Catalog #
6210AXXSZSDC3
Commercial reference
6210AXXSZSDC3
12-Digit UPC:
785901153771
Catalog Number:
6210AXXSZSDC3
Depths:
58.4 mm
ERP_productname:
SQD 6210AXXSZSDC3 SSR 1-NO 10A 3-32 VDC PANEL MOUNT
Family Brand Name:
Schneider Electric
Heights:
35.3 mm
Number of Phases:
1 Phase
Output Voltage:
24-280 V
Widths:
47.1 mm
SoneparProductId:
SKU_US_198836956
The 6000 series, 6210AXXSZS-DC3" , solid-state relays offer an energy-efficient SCR AC Zero cross current switching device with input voltage range as 3 to 32 VDC . Switching contacts configuration performed as SPST-NO with rated current 10 A and output voltage 240 to 280 VAC. Solid-state circuitry involves no moving parts and increases stability and reliability. Optically coupled circuit provides isolation between input and output circuits. Internal snubber helps protect the relay.s internal circuit from high voltage transients. Finger protected screw terminals help prevent an operator from touching live circuits.
