Square-D / Schneider - SQD 6225AXXSZS-DC3 Relay, SE Relays
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901154129
Catalog Number - 6225AXXSZSDC3
Depths - 58.4 mm
ERP_productname - SQD 6225AXXSZSDC3 PRODUCT #15412 SSR,1-NO,25A,3-32 VDC,PANEL MOUNT
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606480277313
Part #
140736
Catalog #
6225AXXSZSDC3
Commercial reference
6225AXXSZSDC3
12-Digit UPC:
785901154129
Catalog Number:
6225AXXSZSDC3
Depths:
58.4 mm
ERP_productname:
SQD 6225AXXSZSDC3 PRODUCT #15412 SSR,1-NO,25A,3-32 VDC,PANEL MOUNT
Family Brand Name:
Schneider Electric
Heights:
35.3 mm
Number of Phases:
1 Phase
Output Voltage:
24-280 V
Widths:
47.1 mm
SoneparProductId:
SKU_US_226945811

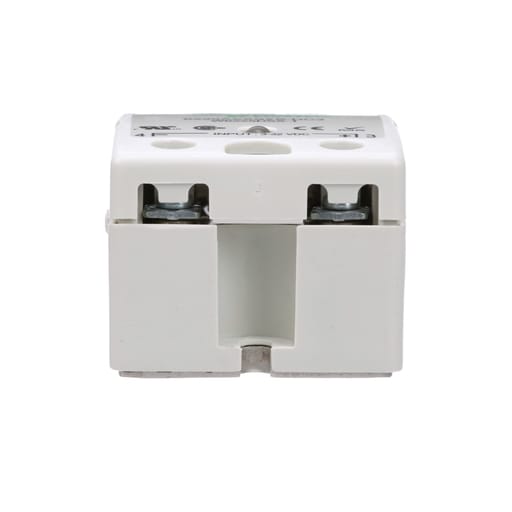

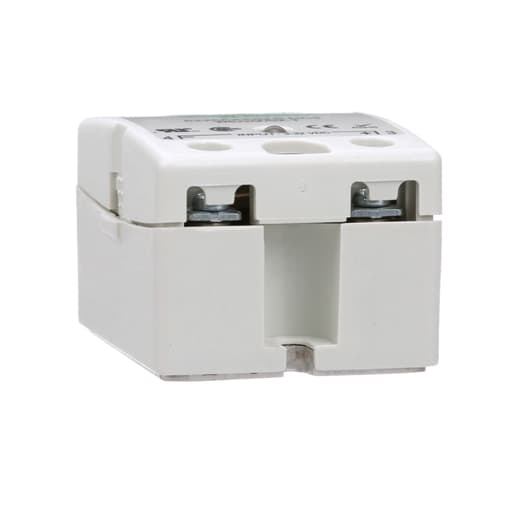

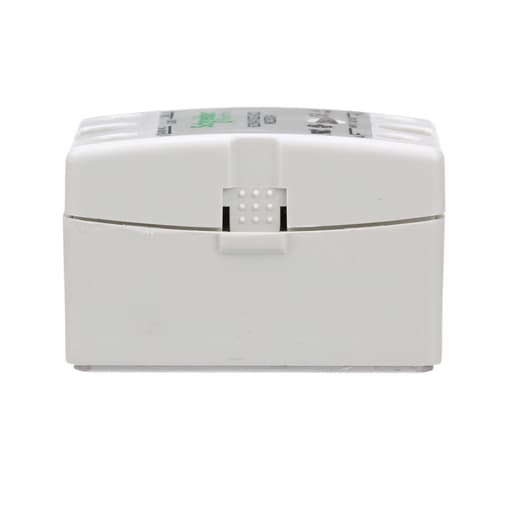

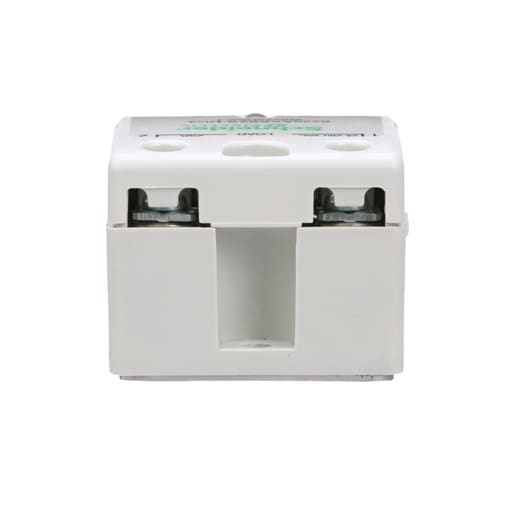

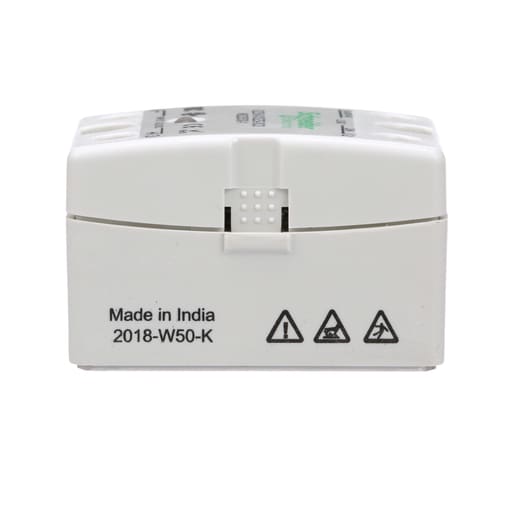

The 6000 series, 6225AXXSZS-DC3" , solid-state relays offer an energy-efficient SCR AC Zero cross current switching device with input voltage range as 3 to 32 VDC . Switching contacts configuration performed as SPST-NO with rated current 25 A and output voltage 240 to 280 VAC. Solid-state circuitry involves no moving parts and increases stability and reliability. Optically coupled circuit provides isolation between input and output circuits. Internal snubber helps protect the relay.s internal circuit from high voltage transients. Finger protected screw terminals help prevent an operator from touching live circuits.
