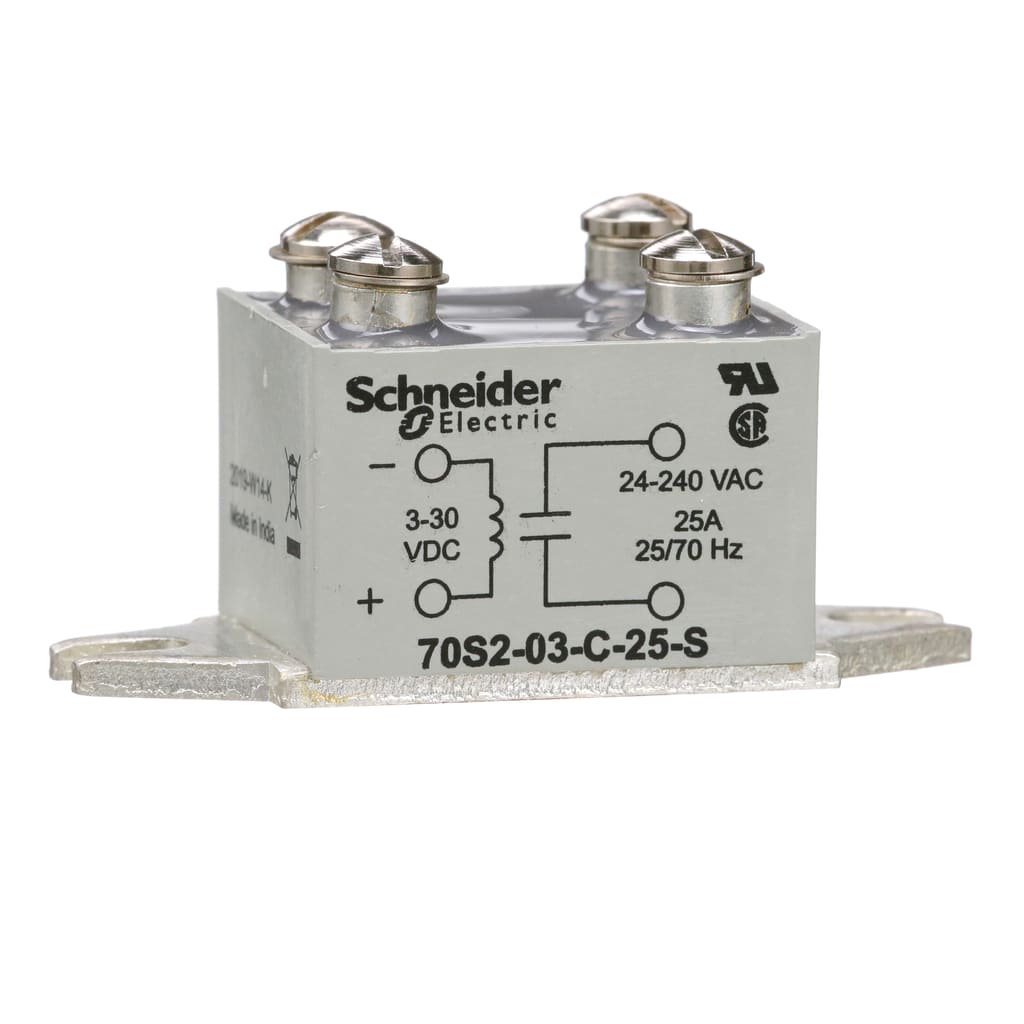

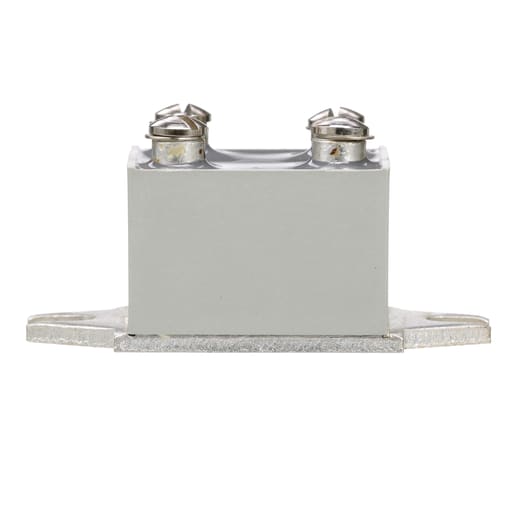

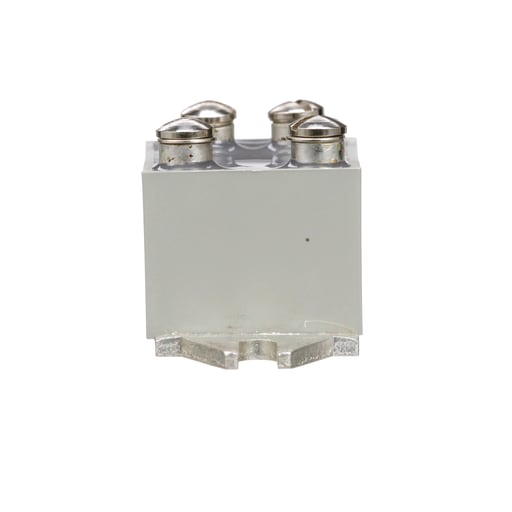

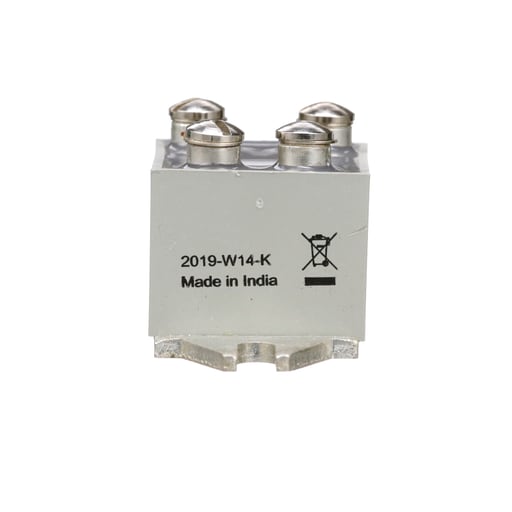

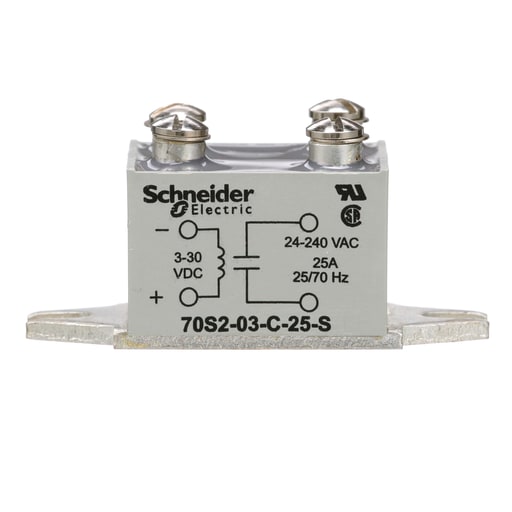

Square-D / Schneider - SQD 70S2-03-C-25-S Solid State Rela
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901160779
Catalog Number - 70S203C25S
Depths - 31.2 mm
ERP_productname - SQD 70S203C25S SSR S STYLE 25A 3-30 VDC PANEL MT
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606480278433
Part #
170815
Catalog #
70S203C25S
Commercial reference
70S203C25S
12-Digit UPC:
785901160779
Catalog Number:
70S203C25S
Depths:
31.2 mm
ERP_productname:
SQD 70S203C25S SSR S STYLE 25A 3-30 VDC PANEL MT
Family Brand Name:
Schneider Electric
Heights:
22.5 mm
Number of Phases:
1 Phase
Output Voltage:
24-280 V
Widths:
26.2 mm
SoneparProductId:
SKU_US_130966456
The 70S2 series, 70S2-03-C-25-S" , miniature solid-state relay are designed for medium power loads with input voltage range as 3 to 30 VDC. TRIAC AC Zero cross switching device has rated output current SPST- NO , output voltage range 25 A , output voltage range 24 to 280 VAC. Solid-state circuitry involves no moving parts and increases stability and reliability. Optically coupled circuit provides isolation between input and output circuits. Internal snubber helps protect the relay.s internal circuit from high voltage transients. Panel mounting mode with screw terminals provides high level of flexibility. Small package size is ideal for small spaces.
