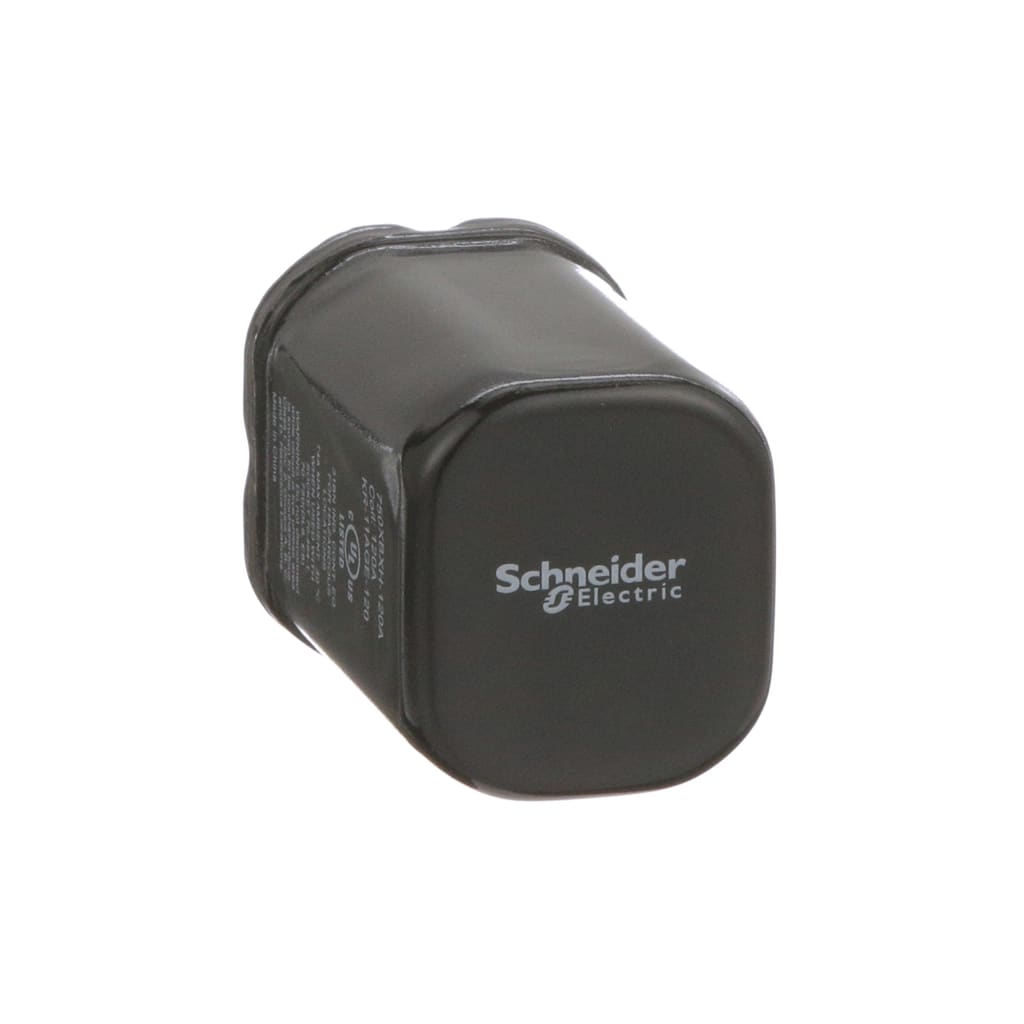

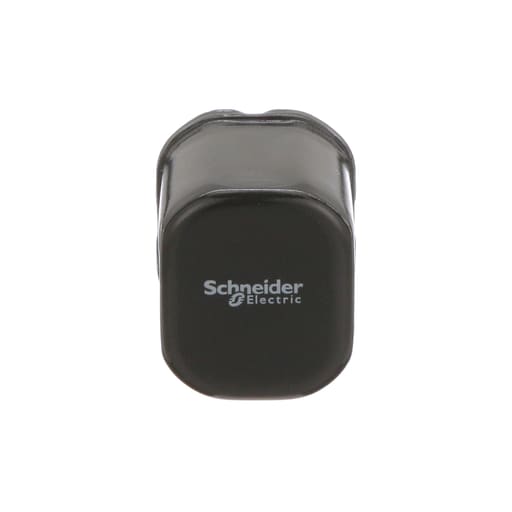

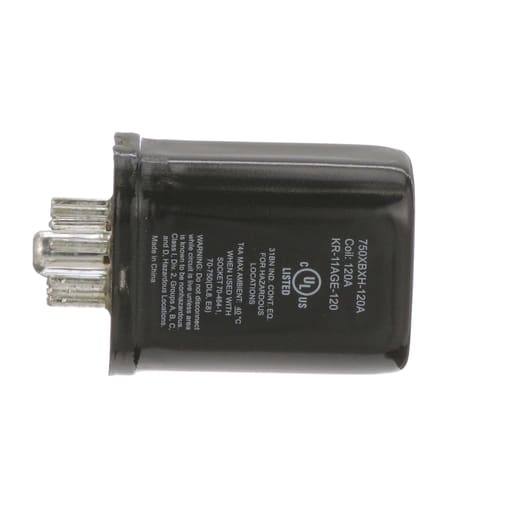

Square-D / Schneider - SQD 750XBXH-120A Relay, General Pur

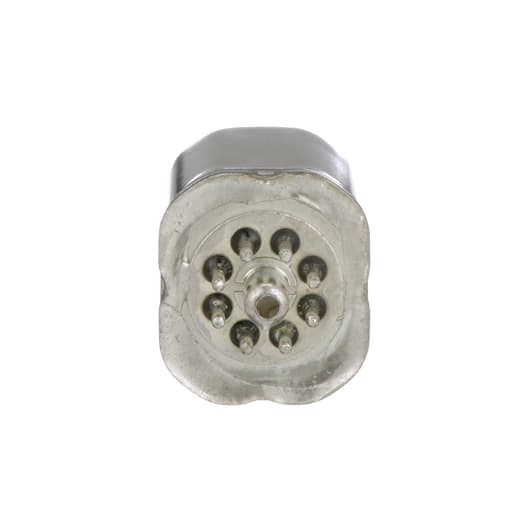

The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Contacts rated as 12A resistive at 120VAC/240VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 120VAC , make relay to be an ideal choice for automation panels and controls. Silver alloy contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 70-750E8-1; 70-750DL8-1; 70-464-1; 70-169-1; 16-700DIN; 16-DCLIP-1
