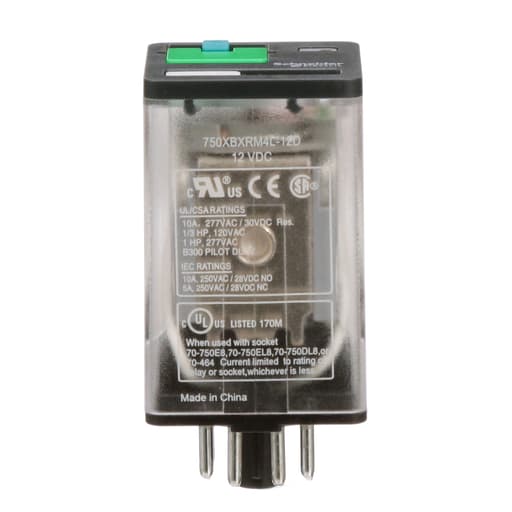

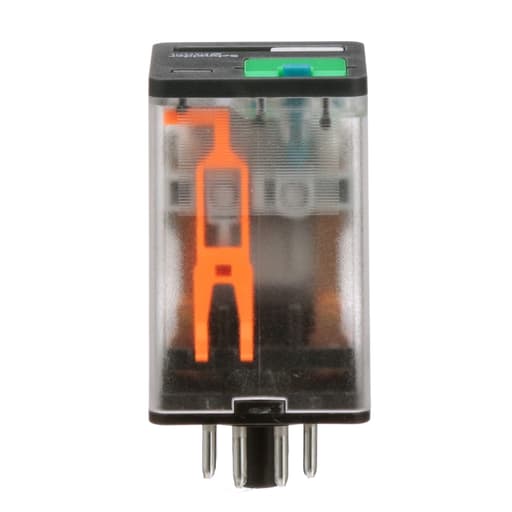

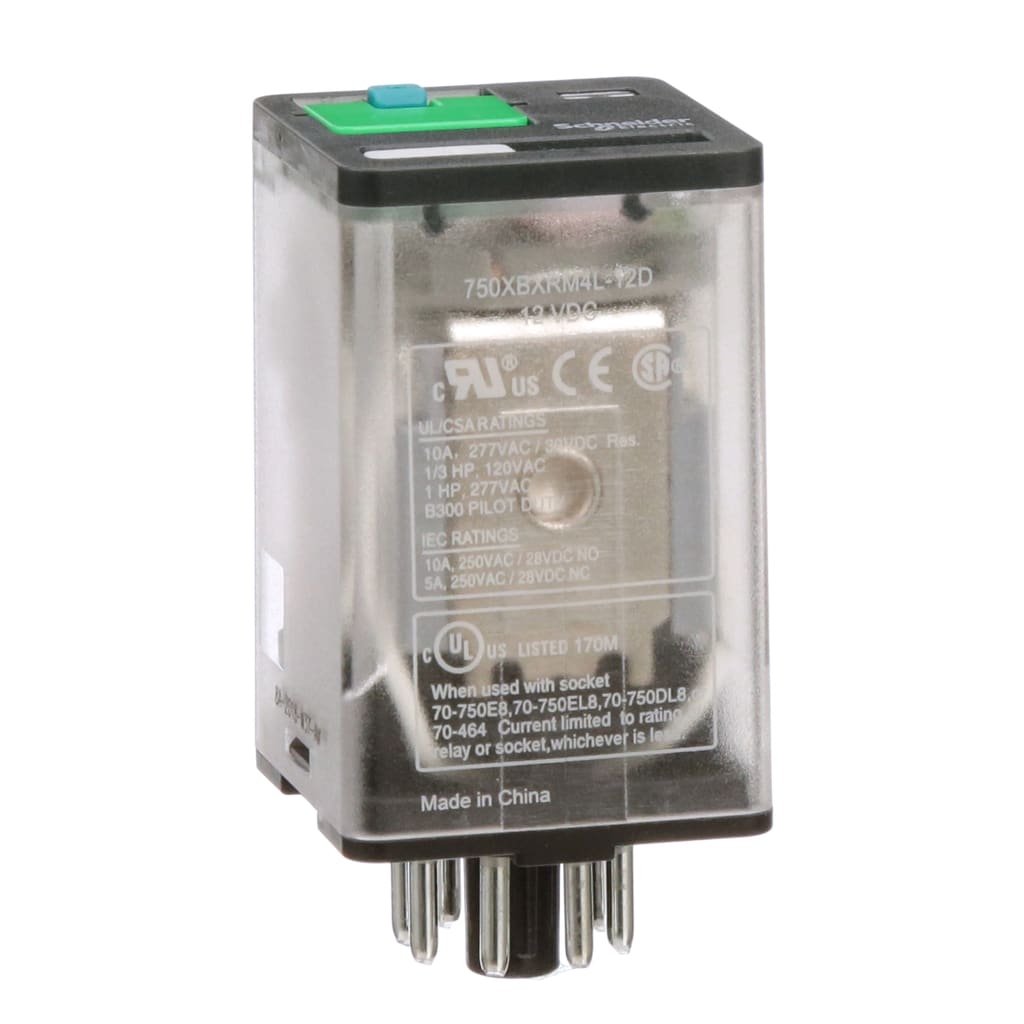

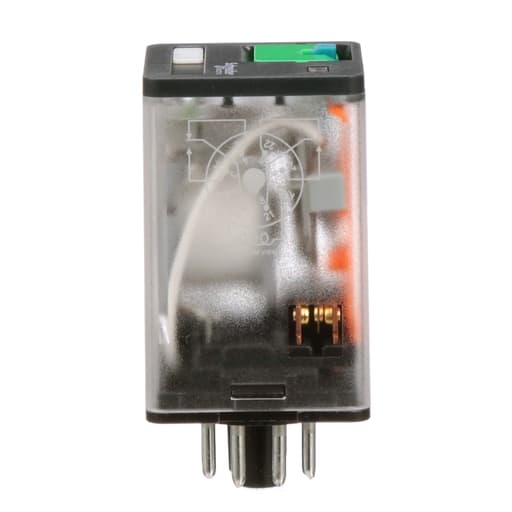

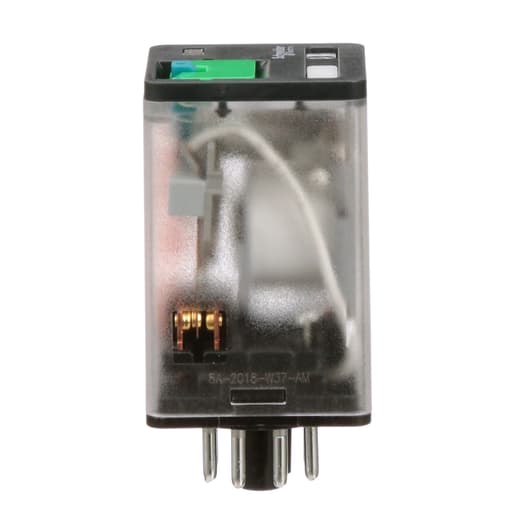

Square-D / Schneider - SQD 750XBXRM4L-12D General purpose

The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with clear cover with LED indicator and locking test button. Contacts rated as 10A at 277VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 12VDC , make relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 70-750DL8-1; 70-464-1; 70-169-1; 16-700DIN; 16-DCLIP-1
