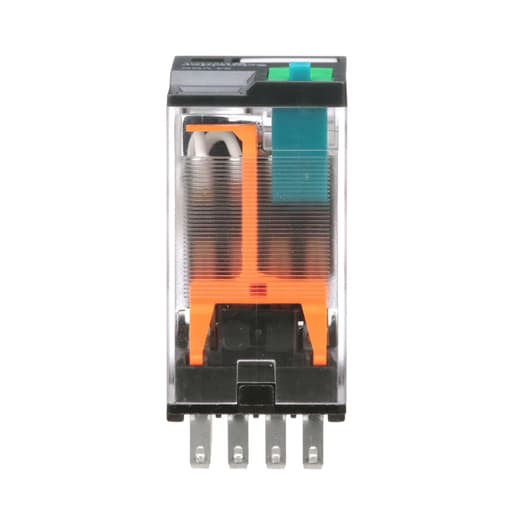

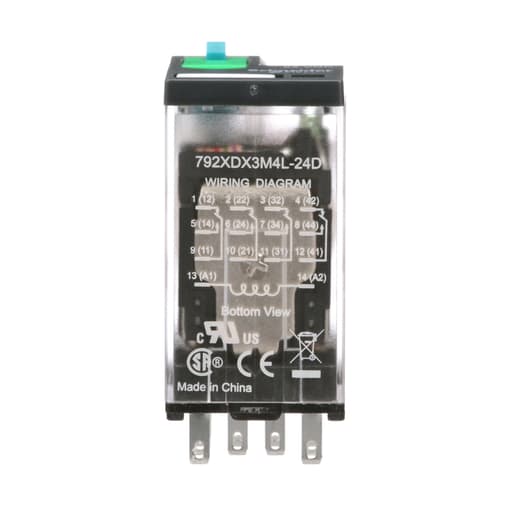

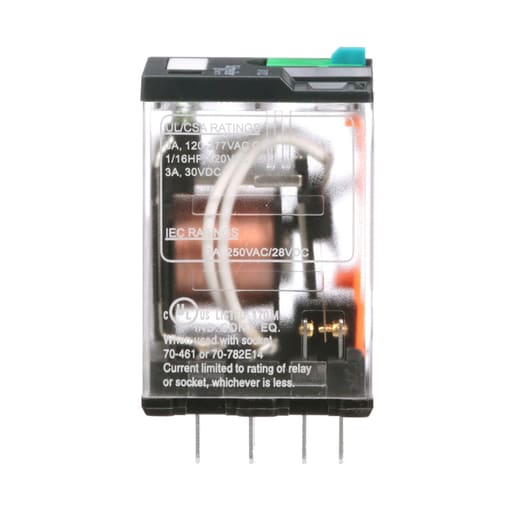

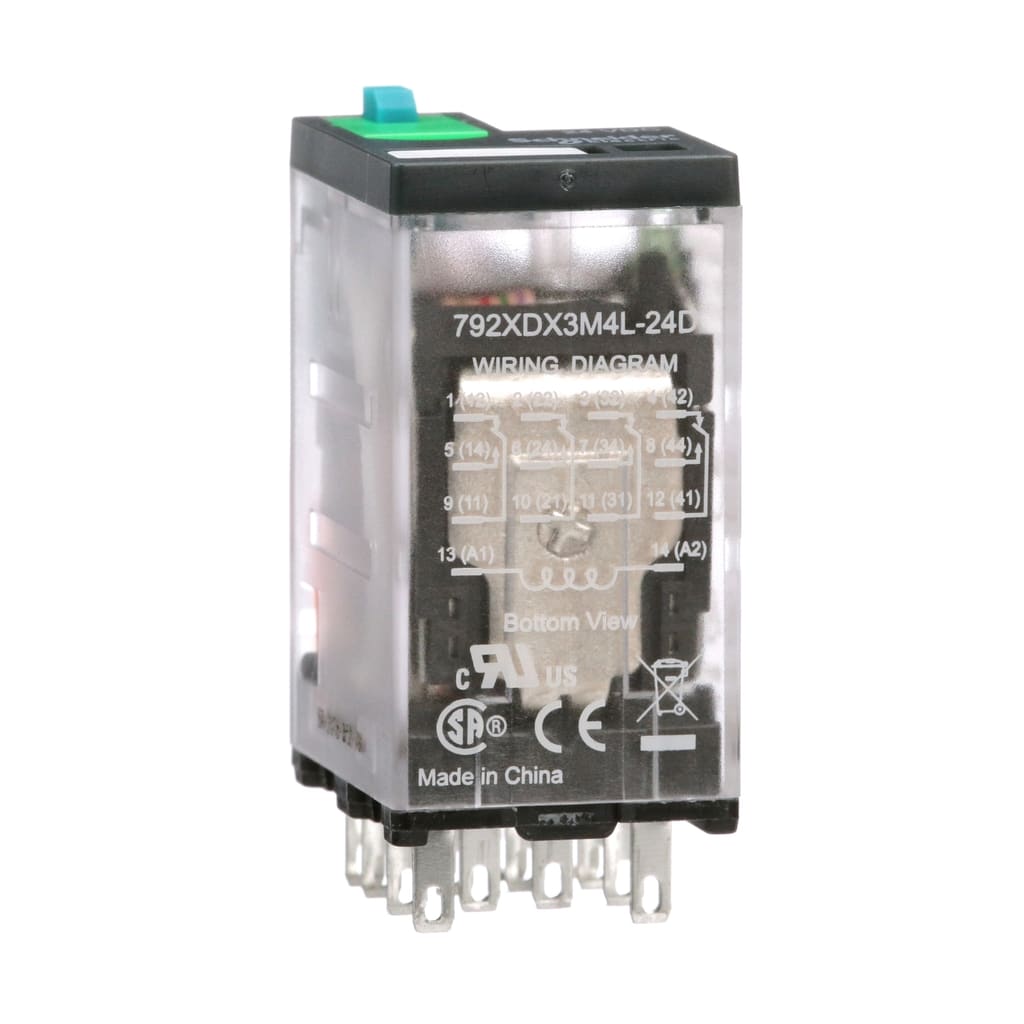

Square-D / Schneider - SQD 792XDX3M4L-24D Power relay, SE

The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button option. Contacts rated as 3A at 240 to 277VAC, motor 1/16hp at 120VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Bifurcated contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 70-461-1; 70-782D14-1; 70-782EL14-1; 70-378-1; 70-379-1; 16-782PC-1; 16-700DIN; 16-DCLIP-1; 16-782C1; 70-BSMD-250; 70-BSMLG-24; 70-BSMM-24
