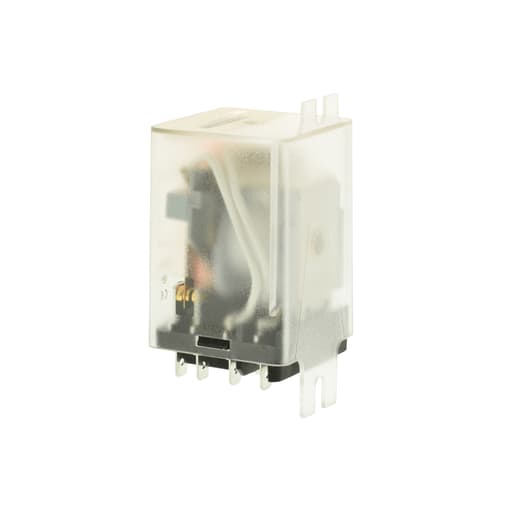

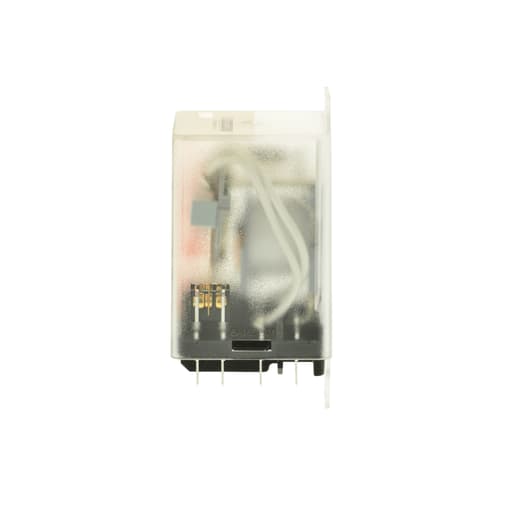

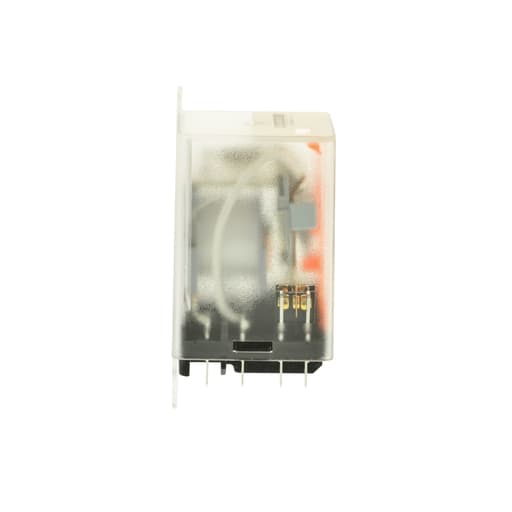

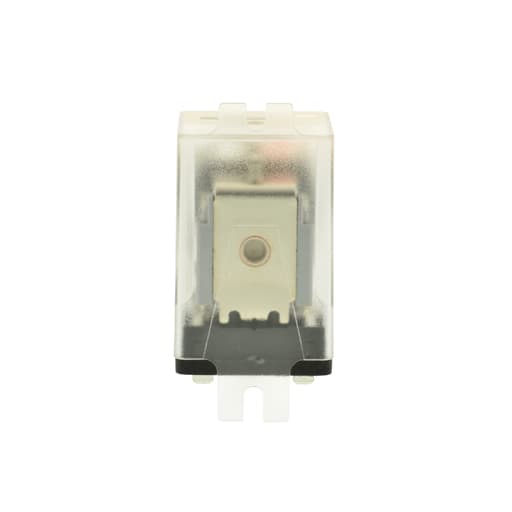

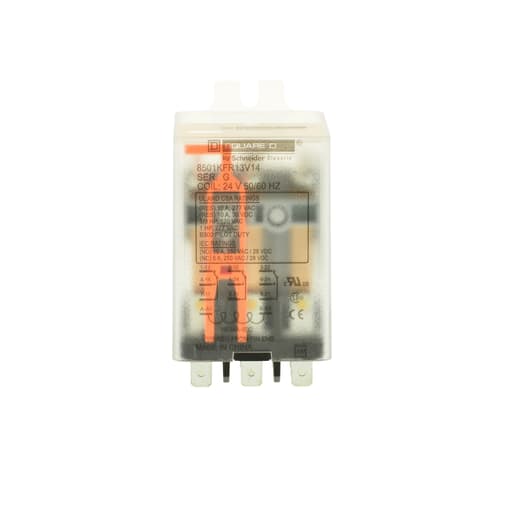

Square-D / Schneider - SQD 8501KFR13V14 Plug in relay, Typ
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901304333
Applications - 1 HP 277 V AC
Catalog Number - 8501KFR13V14
Country of Origin - China
Depths - 1.4 Inch
Packaging
1 ea
EAN
00785901304333
Part #
149876
Catalog #
8501KFR13V14
Commercial reference
8501KFR13V14
12-Digit UPC:
785901304333
Applications:
1 HP 277 V AC
Catalog Number:
8501KFR13V14
Country of Origin:
China
Depths:
1.4 Inch
ERP_productname:
SQD 8501KFR13V14 RELAY 3CO QC PIN 6.6A@240V 24VAC COIL FLANGE
Family Brand Name:
Square D
Heights:
2-3/4 Inch
Mounting Type:
Flange
Type:
Relay;General purpose;3PDT
Widths:
1.4 in
SoneparProductId:
SKU_US_29034300
8501KF universal relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be flange mounted into a panel. This flange mounted relay has 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KF relays are UL component recognized and CSA certified.
