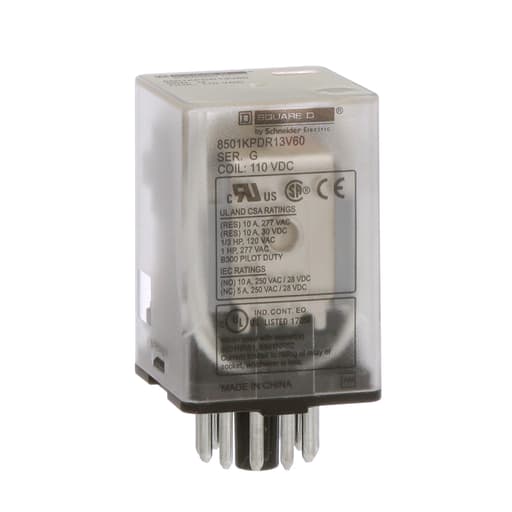

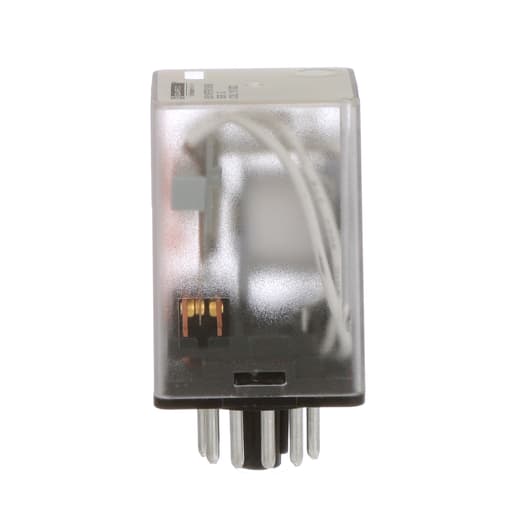

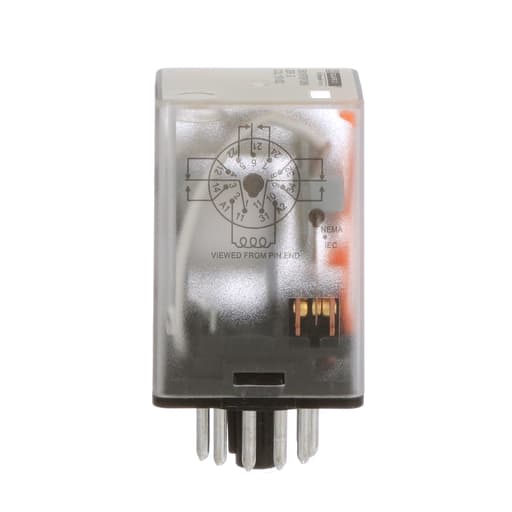

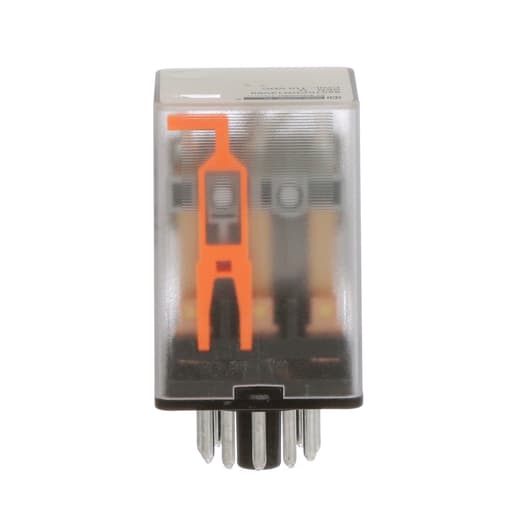

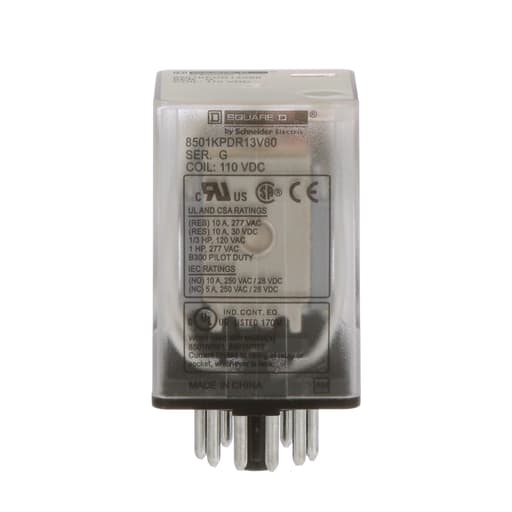

Square-D / Schneider - SQD 8501KPDR13V60 Plug in relay, Ty
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901997269
Applications - 8501NR62;8501NR61
Catalog Number - 8501KPDR13V60
Country of Origin - China
Depths - 1.4 Inch
Packaging
1 ea
EAN
00785901997269
Part #
115227
Catalog #
8501KPDR13V60
Commercial reference
8501KPDR13V60
12-Digit UPC:
785901997269
Applications:
8501NR62;8501NR61
Catalog Number:
8501KPDR13V60
Country of Origin:
China
Depths:
1.4 Inch
ERP_productname:
SQD 8501KPDR13V60 RELAY 3CO CYL PINS 10A@240V 110VDC COIL
Family Brand Name:
Square D
Heights:
2.66 Inch
Mounting Type:
Socket
Type:
Relay
Widths:
1.4 in
SoneparProductId:
SKU_US_29651467
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR61 or 8501NR62 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 110 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
