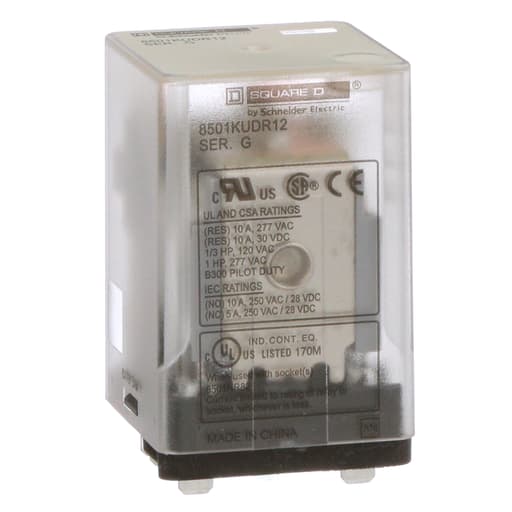

Square-D / Schneider - SQD 8501KUDR12V60 Plug in relay, Ty
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901735977
Applications - 8501NR82
Catalog Number - 8501KUDR12V60
Country of Origin - China
Depths - 1.4 Inch
Packaging
1 ea
EAN
00785901735977
Part #
227290
Catalog #
8501KUDR12V60
Commercial reference
8501KUDR12V60
12-Digit UPC:
785901735977
Applications:
8501NR82
Catalog Number:
8501KUDR12V60
Country of Origin:
China
Depths:
1.4 Inch
ERP_productname:
SQD 8501KUDR12V60 RELAY 2CO QC PINS 10A@240V 240VAC COIL
Family Brand Name:
Square D
Heights:
2-1/4 Inch
Mounting Type:
Socket
Type:
Relay;General purpose;DPDT
Widths:
1.37 in
SoneparProductId:
SKU_US_29159302
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 110 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
