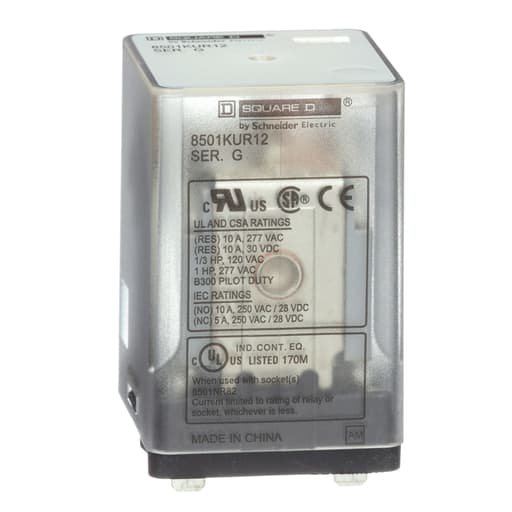

Square-D / Schneider - SQD 8501KUR12V24 Plug in relay, Typ
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901990482
Applications - 1 HP 277 V AC-0.33 HP 120 V AC,8501NR82
Catalog Number - 8501KUR12V24
Country of Origin - China
Depths - 1.4 Inch
Packaging
1 ea
EAN
00785901990482
Part #
101507
Catalog #
8501KUR12V24
Commercial reference
8501KUR12V24
12-Digit UPC:
785901990482
Applications:
1 HP 277 V AC-0.33 HP 120 V AC,8501NR82
Catalog Number:
8501KUR12V24
Country of Origin:
China
Depths:
1.4 Inch
ERP_productname:
SQD 8501KUR12V24 RELAY 2CO QC PINS 10A@240V 240VAC COIL
Family Brand Name:
Square D
Heights:
2-1/4 Inch
Mounting Type:
Socket
Type:
DPDT,GENERAL PURPOSE,RELAY
Widths:
1.37 in
SoneparProductId:
SKU_US_32276559
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 240 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
