Square-D / Schneider - SQD 8501RS41P14V14 Plug in relay, T
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901218470
Amperage - 10@240VAC-15@120VAC Amp
Applications - 8501NR41
Catalog Number - 8501RS41P14V14
Country of Origin - China
Packaging
1 ea
EAN
00785901218470
Part #
184768
Catalog #
8501RS41P14V14
Commercial reference
8501RS41P14V14
12-Digit UPC:
785901218470
Amperage:
10@240VAC-15@120VAC Amp
Applications:
8501NR41
Catalog Number:
8501RS41P14V14
Country of Origin:
China
Depths:
41.8 mm
ERP_productname:
SQD 8501RS41P14V14 RELAY 240VAC 12AMP TYPE R +OPTIONS
Family Brand Name:
Square D
Heights:
27.3 mm
Mounting Type:
Socket
Tc Connection:
SPADE
Type:
Miniature Relay;Standard;SPDT
Widths:
14 mm
SoneparProductId:
SKU_US_29316527

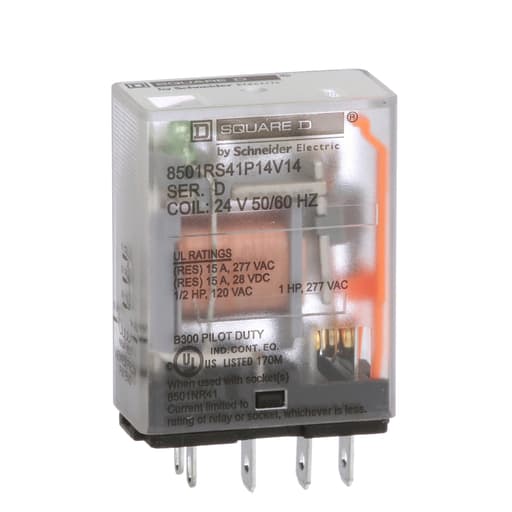

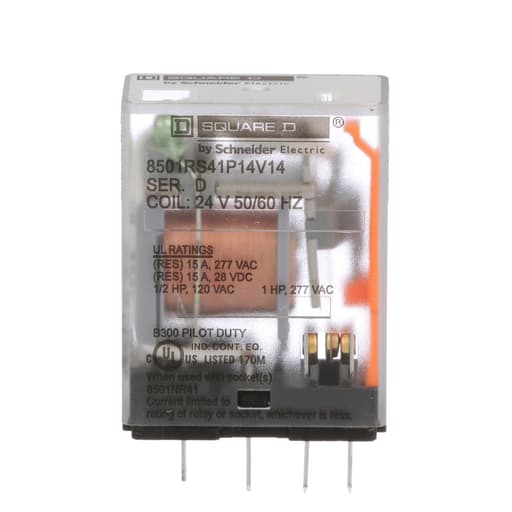

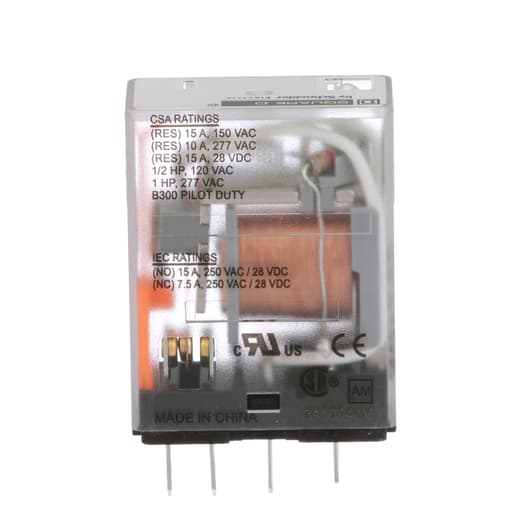

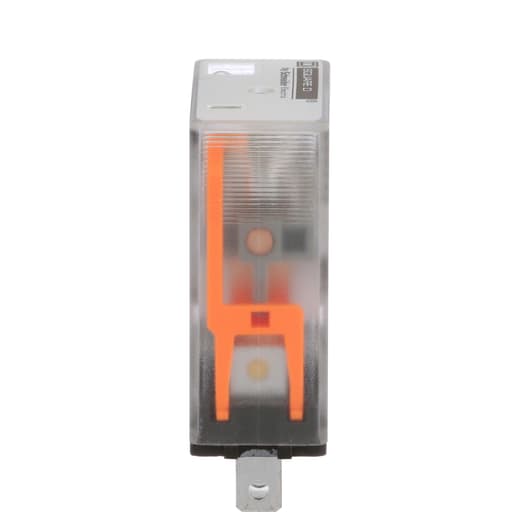

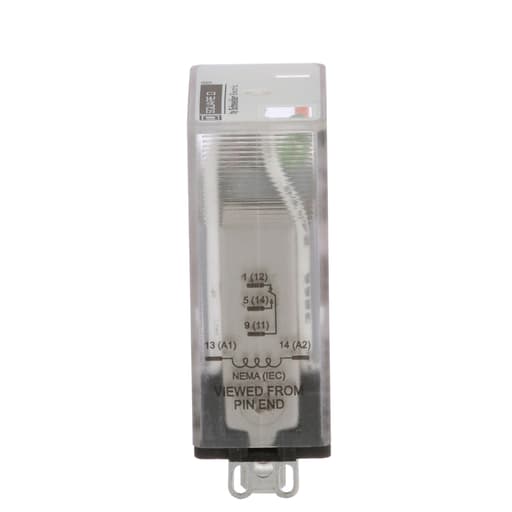

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified. Compatible Products: 8501NR41; 8501NR41B; 9080MH220; 9080MH239; 9080MH320; 9080MH339; 9080MHA10
