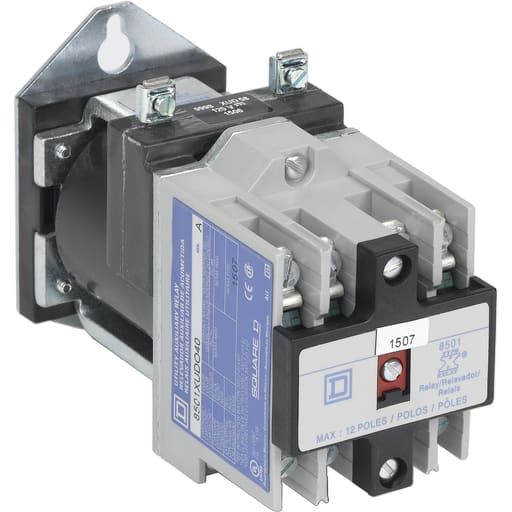

Square-D / Schneider - SQD 8501XUDO40V67 NEMA Control Rela
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901457978
Catalog Number - 8501XUDO40V67
Coil Voltage - 250 V DC
Country of Origin - Mexico
Current - 10 Amp
Packaging
1 ea
EAN
00785901457978
Part #
150361
Catalog #
8501XUDO40V67
Commercial reference
8501XUDO40V67
12-Digit UPC:
785901457978
Catalog Number:
8501XUDO40V67
Coil Voltage:
250 V DC
Country of Origin:
Mexico
Current:
10 Amp
Depths:
5.17 Inch
ERP_productname:
SQD 8501XUDO40V67 RELAY 250VDC 5AMP NEMA +OPTIONS
Family Brand Name:
Square D
Heights:
3.56 Inch
Mounting Type:
Panel
Number of Poles:
4 Pole
Tc Connection:
Screw clamp terminals
Type:
Relay;Utility
Voltage:
250 Volt
Widths:
2.23 in
SoneparProductId:
SKU_US_29704741
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified. Compatible Products: 8501XC1; 8501XC2; 8501XA1; 8501XM8
