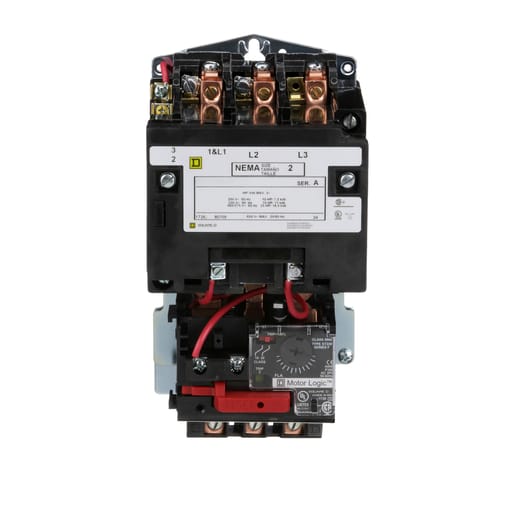

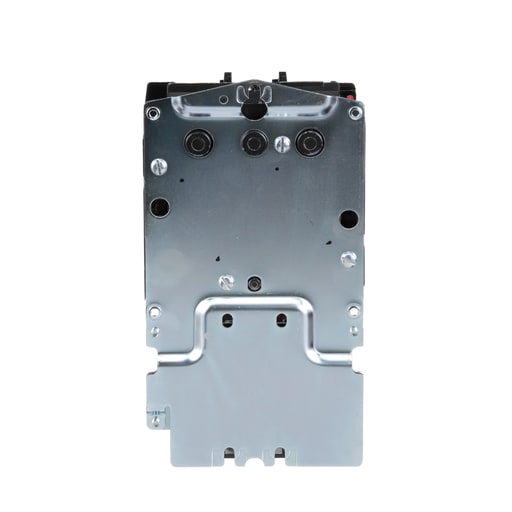

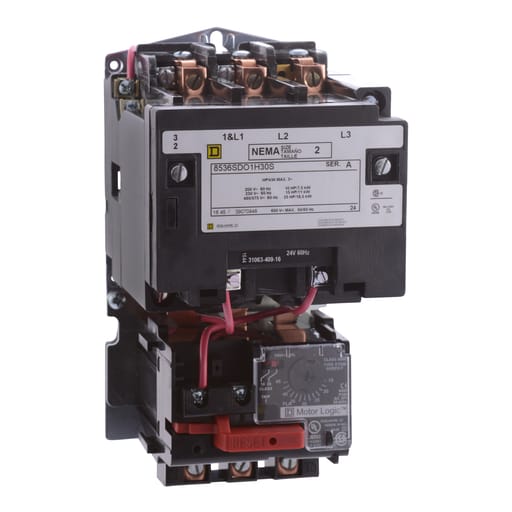

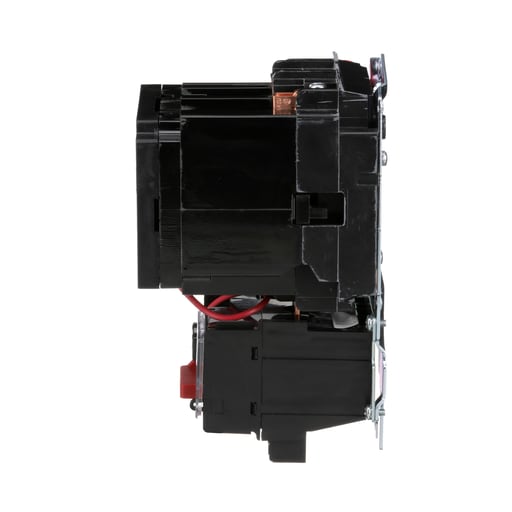

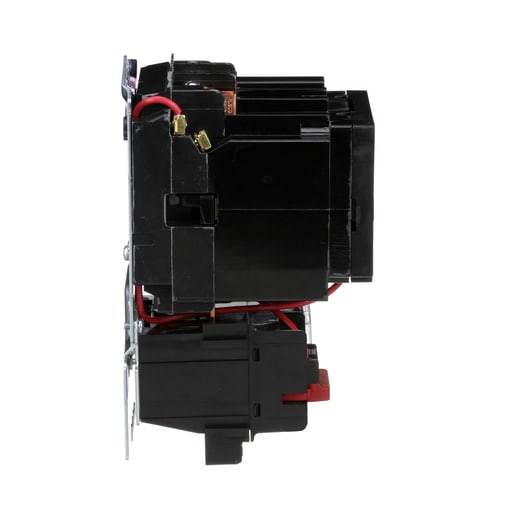

Square-D / Schneider - SQD 8536SDO1V01H30S NEMA Motor Star

12-Digit UPC:

785901951728

Amperage:

45 Amp

Applications:

USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS

Catalog Number:

8536SDO1V01H30S

Country of Origin:

Mexico

Current:

45 Amp

Depths:

4.29 Inch

ERP_productname:

SQD 8536SDO1V01H30S NEMA MOTOR STARTER, TYPE S, NONREVERSING, SIZE 2, 45A, 25 HP AT 460 VAC, UP TO 100 KA SCCR, 3 PHASE, 3 POLE, MOTOR LOGIC, 24 VAC COIL, OPEN

Enclosure:

OPEN

Family Brand Name:

Square D

Heights:

7.8 Inch

NEMA Size:

2

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

2

Sub Brand:

S

Tc Connection:

BOX LUG

Type:

NON-REVERSING STARTER

Voltage:

600 VAC

Widths:

4.92 in

SoneparProductId:

SKU_US_29026125
