Square-D / Schneider - SQD 8538SDASP5 NEMA combination sta

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901908258

  • Amperage - 45 Amp

  • Catalog Number - 8538SDASP5

  • Country of Origin - Mexico

  • Depths - 9.59 Inch

Packaging

  • 1 ea

EAN

00785901908258

Part #

228215

Catalog #

8538SDASP5

Commercial reference

8538SDASP5

12-Digit UPC:

785901908258

Amperage:

45 Amp

Catalog Number:

8538SDASP5

Country of Origin:

Mexico

Depths:

9.59 Inch

Disconnect Type:

Fusible disconnect switch H and K, 30 A, electrical SPDT

ERP_productname:

SQD 8538SDASP5 8538SDA26V02CH301P51P52SX22Y74

Enclosure:

NEMA 12 PAINTED SHEET STEEL AND WITH EXTERNAL RESET

Family Brand Name:

Square D

Heights:

27-3/4 Inch

NEMA Size:

2

Number of Poles:

3 Pole

Size:

10.5 IN,27.75 IN,3.25 IN,9.59 IN

Sub Brand:

S

Type:

S

Voltage:

600 VAC

Widths:

10.5 in

SoneparProductId:

SKU_US_29217938

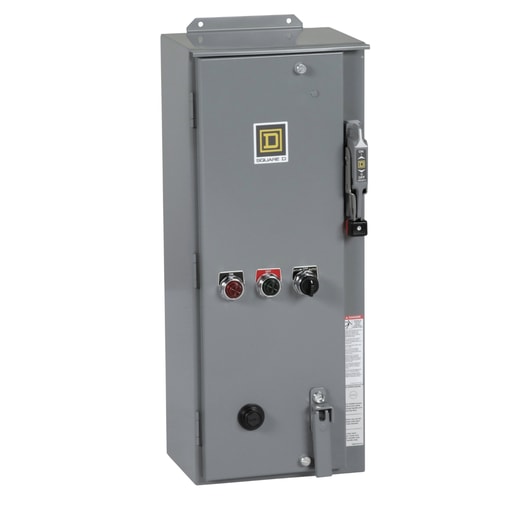

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 15 HP at 480 and 600 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.5 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified. Compatible Products: 9999SX6; 9999SX7; 9999SX8
