Square-D / Schneider - SQD 8903SQO11V04 Contactor, Type S,
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901538950
Applications - MECHANICALLY HELD
Catalog Number - 8903SQO11V04
Coil Voltage - 277@60Hz V
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901538950
Part #
156013
Catalog #
8903SQO11V04
Commercial reference
8903SQO11V04
12-Digit UPC:
785901538950
Applications:
MECHANICALLY HELD
Catalog Number:
8903SQO11V04
Coil Voltage:
277@60Hz V
Country of Origin:
Mexico
Current:
100 Amp
Depths:
171 mm
ERP_productname:
SQD 8903SQO11V04 LIGHTING CONTACTOR 600VAC 100A NEMA
Family Brand Name:
Square D
Heights:
184 mm
Number of Poles:
3 Pole
Size:
3P
Sub Brand:
8903S
Tc Connection:
BOX LUG
Type:
LIGHTING CONTACTOR
Widths:
151 mm
SoneparProductId:
SKU_US_29124594

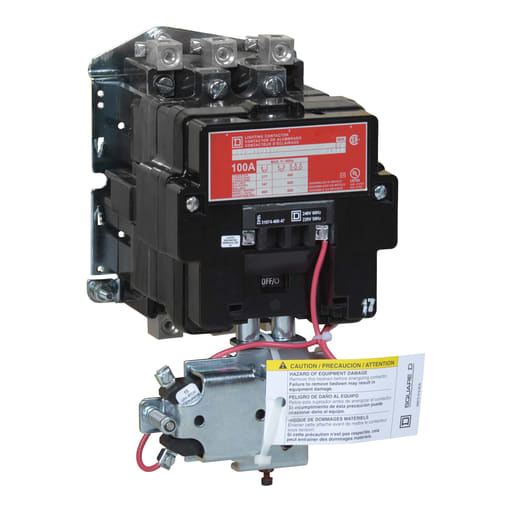

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 100 amperes. This 3 pole device has 3 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 440/480 VAC 50/60 Hz coil. This lighting contactor is an open device without an enclosure. contactor is 7.26 inches tall, 5.94 inches wide and 6.72 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
