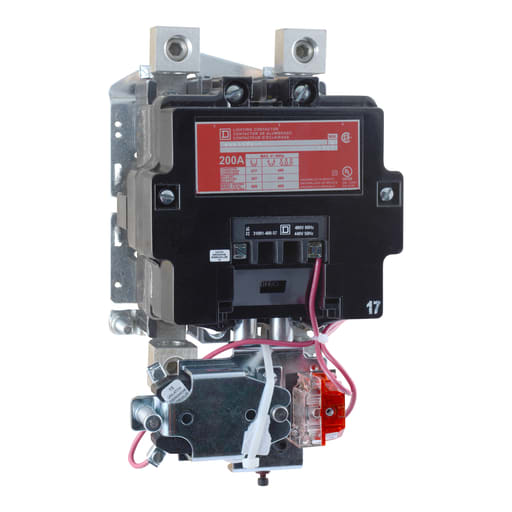

Square-D / Schneider - SQD 8903SVO10V02 Contactor, Type S,
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901341512
Applications - MECHANICALLY HELD LIGHTING CONTACTOR
Catalog Number - 8903SVO10V02
Coil Voltage - 120@60Hz to 110@50Hz VAC
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901341512
Part #
145022
Catalog #
8903SVO10V02
Commercial reference
8903SVO10V02
12-Digit UPC:
785901341512
Applications:
MECHANICALLY HELD LIGHTING CONTACTOR
Catalog Number:
8903SVO10V02
Coil Voltage:
120@60Hz to 110@50Hz VAC
Country of Origin:
Mexico
Current:
200 Amp
Depths:
171 mm
ERP_productname:
SQD 8903SVO10V02 LIGHTING CONTACTOR 600VAC 200A NEMA
Family Brand Name:
Square D
Heights:
232 mm
Number of Poles:
2 Pole
Size:
2P
Sub Brand:
8903S
Tc Connection:
BOX LUG
Type:
S
Widths:
152 mm
SoneparProductId:
SKU_US_25201879
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 200 amperes. This 2 pole device has 2 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. This lighting contactor is an open device without an enclosure. contactor is 9.14 inches tall, 6.00 inches wide and 6.72 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
