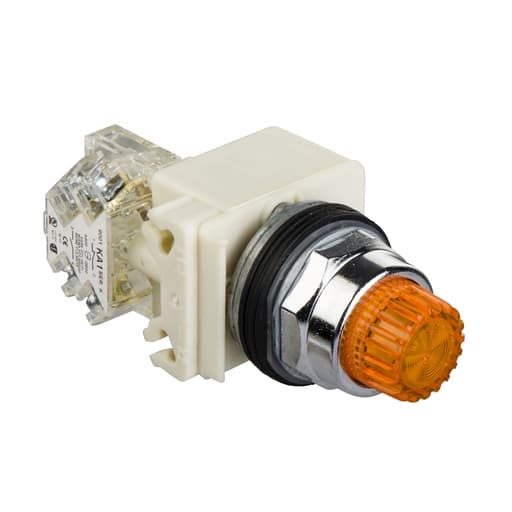

Square-D / Schneider - SQD 9001K2L38LYAH13 Illuminated pus

Essential specifications

12-Digit UPC - 785901521228
Actuator - AMBER PROJECTING, UNMARKED,SPRING RETURN
Amperage - 0.55 Amp 125 V, DC-13, A600-Q600 NEMA
Catalog Number - 9001K2L38LYAH13
Color - Amber

Packaging

1 ea

EAN

03389110927870

Part #

197021

Catalog #

9001K2L38LYAH13

Commercial reference

9001K2L38LYAH13

12-Digit UPC:

785901521228

Actuator:

AMBER PROJECTING, UNMARKED,SPRING RETURN

Amperage:

0.55 Amp 125 V, DC-13, A600-Q600 NEMA

Catalog Number:

9001K2L38LYAH13

Color:

Amber

Country of Origin:

Mexico

ERP_productname:

SQD 9001K2L38LYAH13 PUSH BUTTON 600VAC 10A 30MM T-K

Enclosure:

NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4

Family Brand Name:

Schneider Electric

Heights:

42 mm

Size:

30 mm

Sub Brand:

9001K

Tc Connection:

SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA. IEC 60947-1

Type:

Illuminated push-button

Voltage:

120 VAC//VDC

Widths:

54 mm

SoneparProductId:

SKU_US_73746425

This Harmony 9001K, modular illuminated projecting amber push button is supplied with integral LED. It has a chromium-plated metal bezel and is supplied with a 120V AC and has 1 changeover contact. This illuminated projecting push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Compatible Products: 9001KA1; 9001KA2; 9001KA3; 9001KA5 - Spare Part Products: 9001A7; 9001K2L; 9001KA1; 9001KM38LY
