Square-D / Schneider - SQD 9001K3L35LLLH13 Illuminated pus
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901403524
Actuator - BLUE FLUSH,SPRING RETURN
Amperage - 10 Amp, AC-15-10 Amp, DC-13
Catalog Number - 9001K3L35LLLH13
Color - Blue
Packaging
1 ea
EAN
00785901403524
Part #
147105
Catalog #
9001K3L35LLLH13
Commercial reference
9001K3L35LLLH13
12-Digit UPC:
785901403524
Actuator:
BLUE FLUSH,SPRING RETURN
Amperage:
10 Amp, AC-15-10 Amp, DC-13
Catalog Number:
9001K3L35LLLH13
Color:
Blue
Country of Origin:
Mexico
ERP_productname:
SQD 9001K3L35LLLH13 PUSHBUTTON 600VAC 10AMP 30MM TYPE K+OPT
Enclosure:
NEMA 1/2/3/3R/4/6/12/13
Family Brand Name:
Square D
Size:
30 MM
Sub Brand:
K
Tc Connection:
SCREW CLAMP TERMINALS
Type:
ILLUMINATED PUSH-BUTTON
Voltage:
24...28 Volt AC/DC
SoneparProductId:
SKU_US_31547648

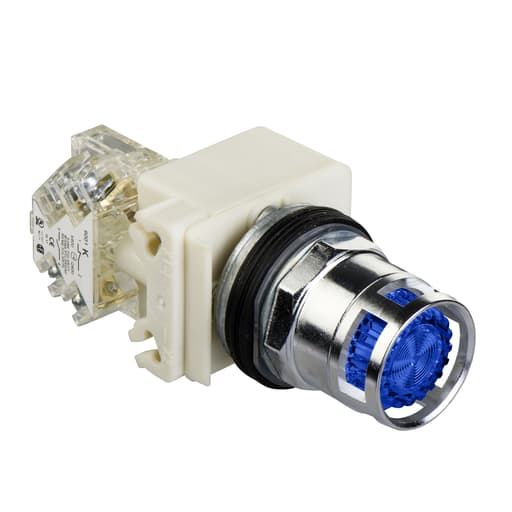

This Harmony 9001K, modular illuminated flush blue push button is supplied with extended guard and integral LED. It has a chromium-plated metal bezel, is supplied with 24V AC/DC and has 1 changeover contact. This illuminated push button with extended guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
