Square-D / Schneider - SQD 9001K3L38LRR Illuminated push-b
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901608745
Actuator - RED FLUSH, UNMARKED,SPRING RETURN
Catalog Number - 9001K3L38LRR
Color - Red
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901608745
Part #
225230
Catalog #
9001K3L38LRR
Commercial reference
9001K3L38LRR
12-Digit UPC:
785901608745
Actuator:
RED FLUSH, UNMARKED,SPRING RETURN
Catalog Number:
9001K3L38LRR
Color:
Red
Country of Origin:
Mexico
ERP_productname:
SQD 9001K3L38LRR PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS
Enclosure:
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4
Family Brand Name:
Square D
Size:
1.18 in
Sub Brand:
9001K
Tc Connection:
SCREW CLAMP
Type:
Complete illuminated push-button
SoneparProductId:
SKU_US_30272165

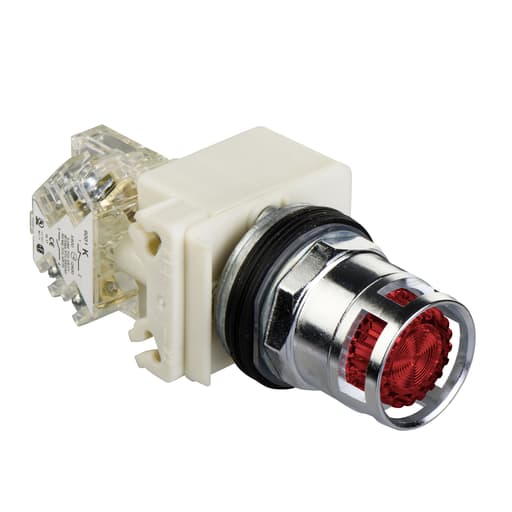

This Harmony 9001K, modular illuminated flush red push button is supplied with extended guard and integral LED. It has a chromium-plated metal bezel. This illuminated push button with extended guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
