Square-D / Schneider - SQD 9001SKR9P1LH13 Illuminated push

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901953012

  • Actuator - BLUE MUSHROOM .. 41 MM,PUSH-PULL

  • Amperage - 10 Amp

  • Catalog Number - 9001SKR9P1LH13

  • Color - Blue

Packaging

  • 1 ea

EAN

00785901953012

Part #

101617

Catalog #

9001SKR9P1LH13

Commercial reference

9001SKR9P1LH13

12-Digit UPC:

785901953012

Actuator:

BLUE MUSHROOM .. 41 MM,PUSH-PULL

Amperage:

10 Amp

Catalog Number:

9001SKR9P1LH13

Color:

Blue

Country of Origin:

Mexico

ERP_productname:

SQD 9001SKR9P1LH13 PUSHBUTTON 120VAC 30MM SK +OPTIONS

Enclosure:

NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X

Family Brand Name:

Square D

Size:

30 MM

Sub Brand:

9001SK

Tc Connection:

SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA. IEC 60947-1

Type:

ILLUMINATED MUSHROOM HEAD PUSH-BUTTON

Voltage:

110...120 Volt AC 50...60 HZ

SoneparProductId:

SKU_US_30467722

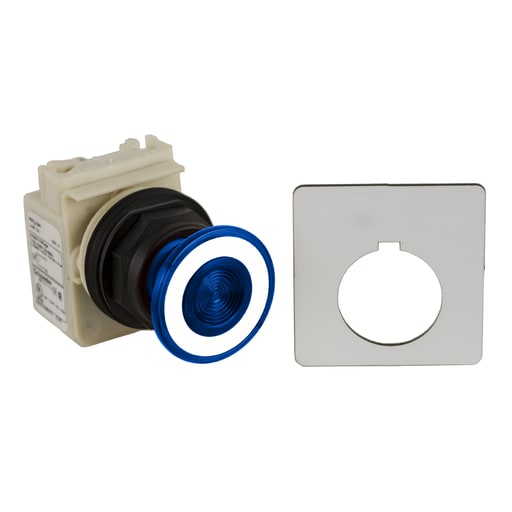

This Harmony 9001SK, modular illuminated blue push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head with 1 x NO + 1 x NC contacts. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
