Square-D / Schneider - SQD 9080LBA365202 Power distributio

Essential specifications

12-Digit UPC - 785901097532
Amperage - 620-620 Amp COPPER-500-500 Amp ALUMINIUM
Applications - 9080LB,9080LB53
Catalog Number - 9080LBA365202
Conductor Size - 6 AWG-350 kcmil

Packaging

1 ea

EAN

00785901097532

Part #

194250

Catalog #

9080LBA365202

Commercial reference

9080LBA365202

12-Digit UPC:

785901097532

Amperage:

620-620 Amp COPPER-500-500 Amp ALUMINIUM

Applications:

9080LB,9080LB53

Catalog Number:

9080LBA365202

Conductor Size:

6 AWG-350 kcmil

Country of Origin:

USA

Current:

500 Amp

Depths:

3.13 Inch

ERP_productname:

SQD 9080LBA365202 PWR DIST BLOCK

Family Brand Name:

Square D

Heights:

5-1/2 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

3 Pole

Size:

3.13 in

Tc Connection:

LINE LUG 275 LBF.IN AWG 4...350 KCMIL COPPER OR ALUMINIUM-LOAD LUG 275 LBF.IN AWG 4...350 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB53;Power Distribution Block

Voltage:

600 Volt

Widths:

8.54 in

Wire Size:

Line 2, AWG 6...350 kcmil, copper or aluminium;Load 2, AWG 6...350 kcmil, copper or aluminium

SoneparProductId:

SKU_US_31634821

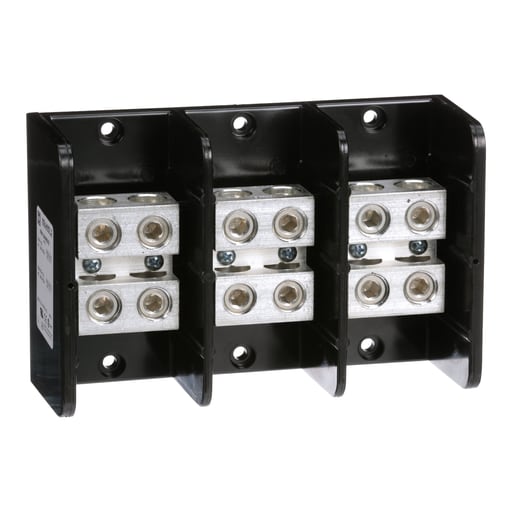

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 350 kcmil copper or aluminum wire. The load side lugs are rated to accept one #4 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 620 amperes with copper wire and 500 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080LB53
