Square-D / Schneider - SQD 9421LCP48 Circuit breaker acces

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901702511

  • Applications - 9421LW7 OPERATING MECHANISM,NEMA 1/3R/4/4X/12 ENCLOSURE

  • Catalog Number - 9421LCP48

  • Country of Origin - Mexico

  • ERP_productname - SQD 9421LCP48 CIRCUIT BREAKER MECHANISM, ROTARY HANDLE, 6 INCH HANDLE, CHROME PLATED, NEMA 4X, FOR POWERPACT M AND P CIRCUIT BREAKERS

Packaging

  • 1 ea

EAN

00785901702511

Part #

234972

Catalog #

9421LCP48

Commercial reference

9421LCP48

12-Digit UPC:

785901702511

Applications:

9421LW7 OPERATING MECHANISM,NEMA 1/3R/4/4X/12 ENCLOSURE

Catalog Number:

9421LCP48

Country of Origin:

Mexico

ERP_productname:

SQD 9421LCP48 CIRCUIT BREAKER MECHANISM, ROTARY HANDLE, 6 INCH HANDLE, CHROME PLATED, NEMA 4X, FOR POWERPACT M AND P CIRCUIT BREAKERS

Enclosure Rating:

1, 3R, 4, 4X, 12

Enclosure Type:

NEMA 1/3R/4/4X/12 enclosure

Family Brand Name:

Square D

Length:

8 Inch

Type:

Handle Assembly

SoneparProductId:

SKU_US_73300900

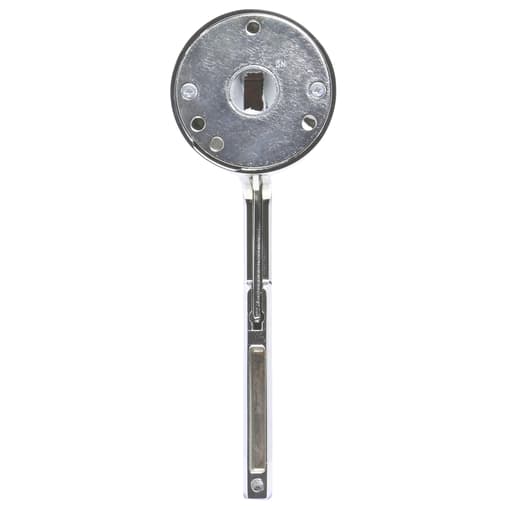

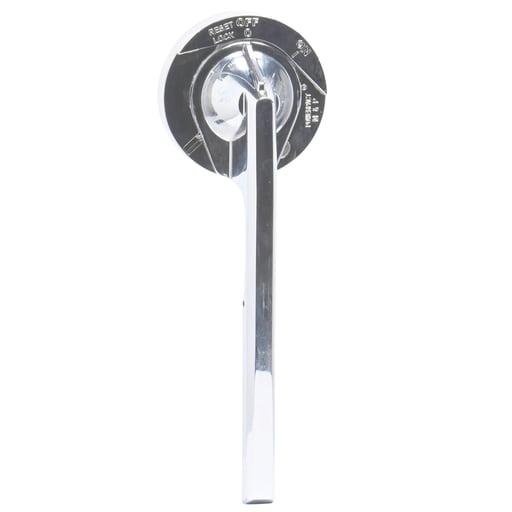

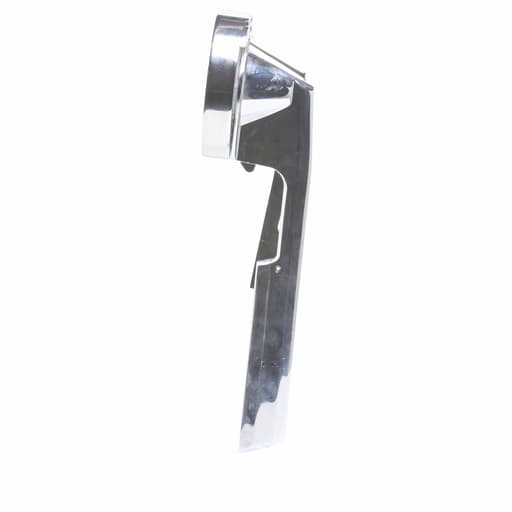

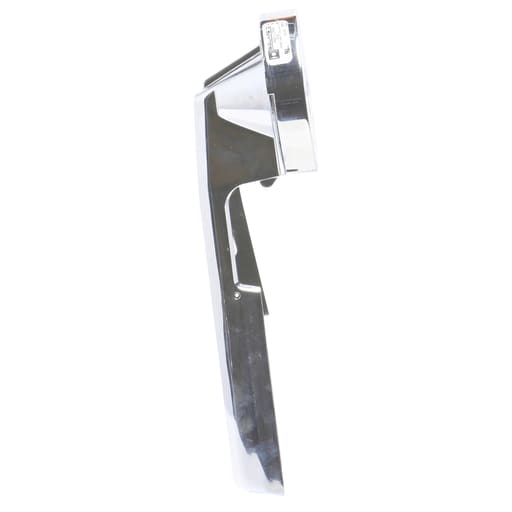

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This handle assembly is for NEMA 3, 4, and 4X enclosures. The handle assembly has a chrome plated 8 inch handle. This product complies with UL standards. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9421LS10; MJA36800; MJL36800; MGA36800; MGL36800
