Square-D / Schneider - SQD 9422CSFD33 Disconnect mechanism

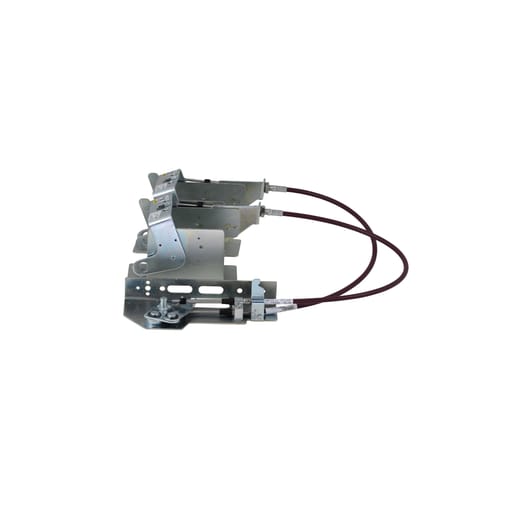

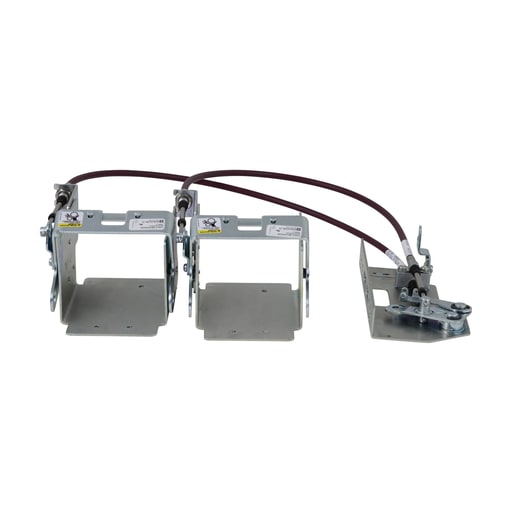

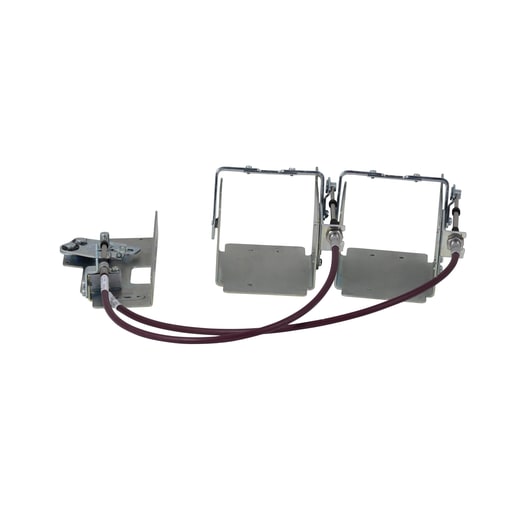

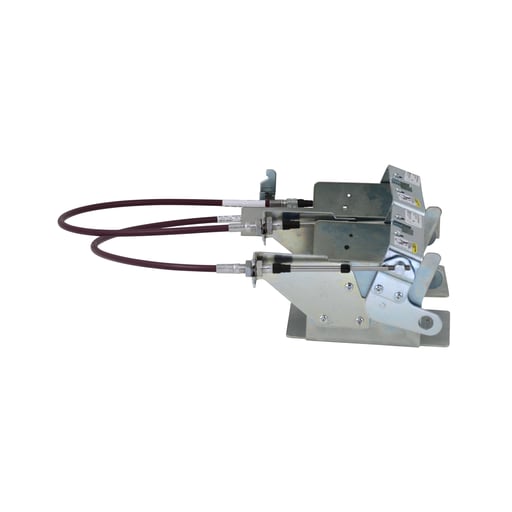

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Dual cable operating mechanisms are designed for use with Square D circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has two 36 inch long cables. Mechanism will work with Compact NSF, PowerPacT H and PowerPacT J circuit breakers. This cable mechanism allows a single handle operator to operate two circuit breakers. Must use a 9422AP1 or 9422AP2 operating handle with this operating mechanism. Disconnect switch is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A1; 9422A1Y; 9422A2; 9422A3; 9422A4; 9422RB1; 9422RM1; 9422RQ1; 9422RS1; HDA36020; HDA36030; HDA36050; HDA36060; HDA36070; HDA36080; HDA36090; HDA36100; HDA36110; JGL36200; JGL36225; JGL36250; JJL36200; JJL36250
