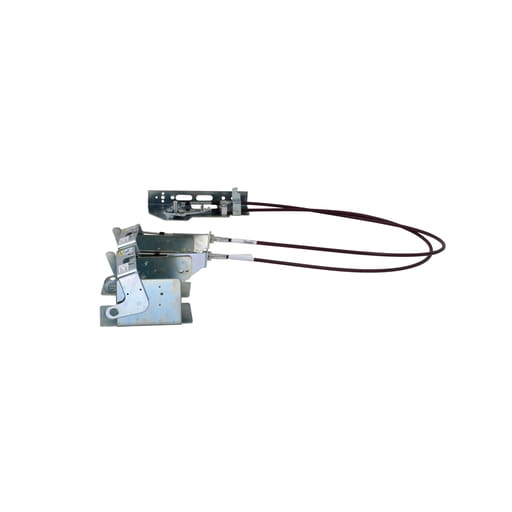

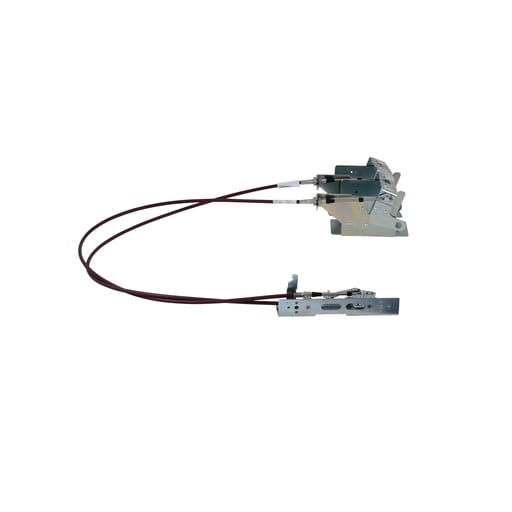

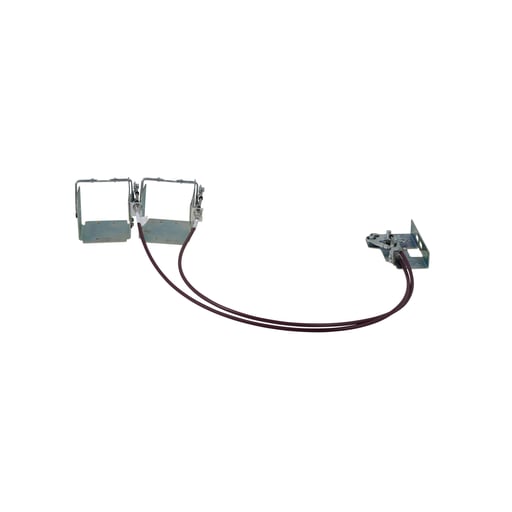

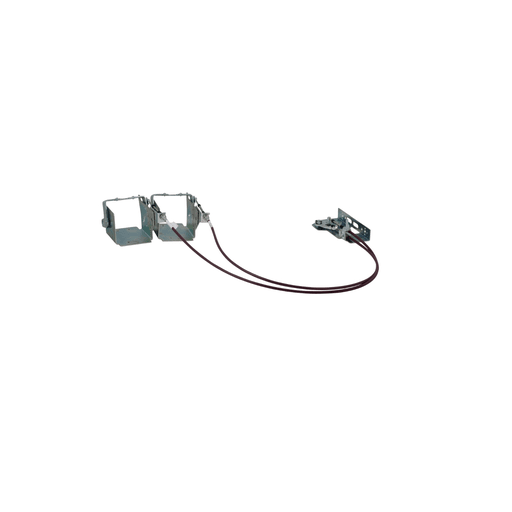

Square-D / Schneider - SQD 9422CSFD55 Disconnect mechanism
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901924395
Catalog Number - 9422CSFD55
Circuit Breaker Type - MG-NSF 2,MG-NSF 3,PowerPact H Or J 2,PowerPact H Or J 3
Country of Origin - Mexico
ERP_productname - SQD 9422CSFD55 DUAL CABLE OPERATOR FOR H&J 60 INCH
Packaging
1 ea
EAN
00785901924395
Part #
193350
Catalog #
9422CSFD55
Commercial reference
9422CSFD55
12-Digit UPC:
785901924395
Catalog Number:
9422CSFD55
Circuit Breaker Type:
MG-NSF 2,MG-NSF 3,PowerPact H Or J 2,PowerPact H Or J 3
Country of Origin:
Mexico
ERP_productname:
SQD 9422CSFD55 DUAL CABLE OPERATOR FOR H&J 60 INCH
Family Brand Name:
Square D
Trip Type:
MG-NSF 2-MG-NSF 3-POWERPACT H OR J 2-POWERPACT H OR J 3
Type:
Dual Cable Operating Mechanism
SoneparProductId:
SKU_US_75177223
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Dual cable operating mechanisms are designed for use with Square D circuit breakers. This cable mechanism allows a single handle operator to operate two circuit breakers. This mechanism has two 60 inch long cables. Circuit breakers is 2 or 3 pole with a frame size of 250 A. Disconnect switch is UL Component Recognized and CSA certified. Mechanism will work with Compact NSF, PowerPact H and PowerPact J circuit breakers. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A1; 9422A1Y; 9422A2; 9422A3; 9422A4; 9422RB1; 9422RM1; 9422RQ1; 9422RS1; HDA36020; HDA36030; HDA36050; HDA36060; HDA36070; HDA36080; HDA36090; HDA36100; HDA36110; JGL36200; JGL36225; JGL36250; JJL36200; JJL36250
