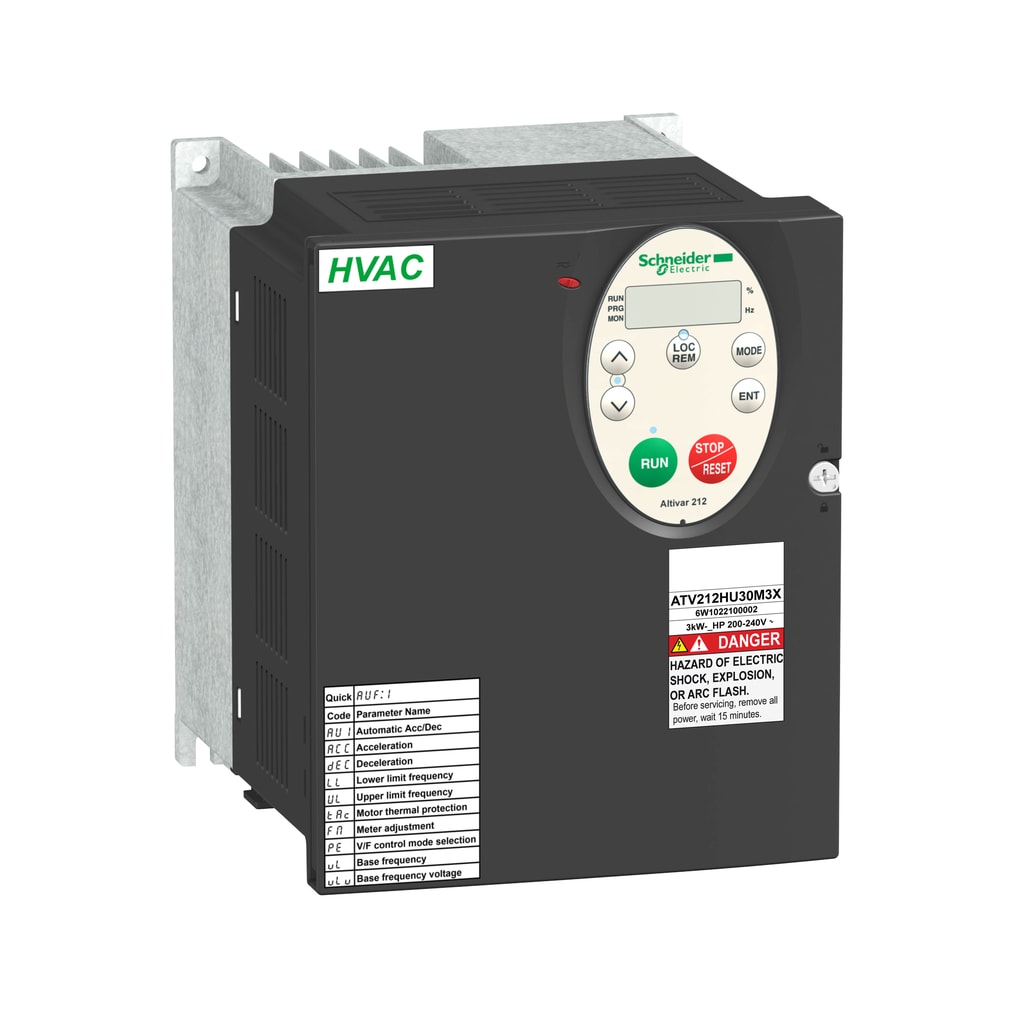

Square-D / Schneider - SQD ATV212HU30M3X variable speed dr

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901963790

  • Applications - VARIABLE TORQUE

  • Catalog Number - ATV212HU30M3X

  • Country of Origin - Indonesia

  • Depths - 150 mm

Packaging

  • 1 ea

EAN

03606480322358

Part #

178515

Catalog #

ATV212HU30M3X

Commercial reference

ATV212HU30M3X

12-Digit UPC:

785901963790

Applications:

VARIABLE TORQUE

Catalog Number:

ATV212HU30M3X

Country of Origin:

Indonesia

Depths:

150 mm

ERP_productname:

SQD ATV212HU30M3X SPEEDDRIVE 200-240VAC 4HP,ATV212

Enclosure:

OPEN IP20

Family Brand Name:

Schneider Electric

Heights:

184 mm

Number of Phases:

3 Phase

Output Voltage:

<= power supply voltage

Size:

SIZE 2A

Sub Brand:

ALTIVAR 212

Tc Connection:

TERMINAL 2.5 MMA. / AWG 14 (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)TERMINAL 6 MMA. / AWG 10 (L1/R, L2/S, L3/T) 1 RJ451 OPEN STYLE

Type:

AC DRIVE

Voltage:

240/240

Wattage:

3 kW

Widths:

142 mm

SoneparProductId:

SKU_US_29311294

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21. It works at a rated power up to 3kW and a rated voltage from 200V to 240V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.05kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 .) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
