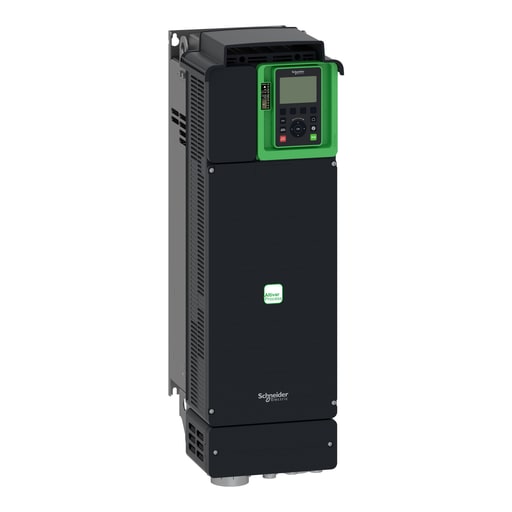

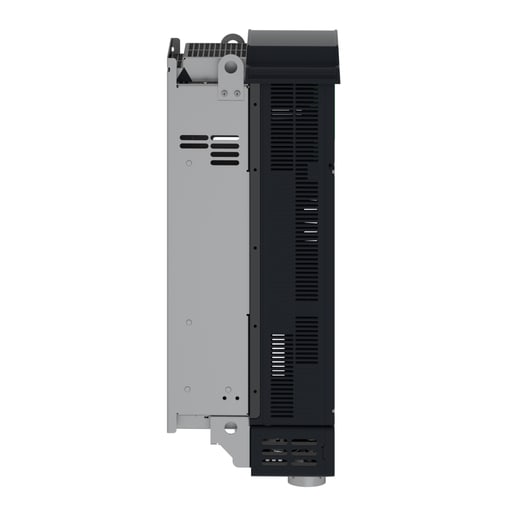

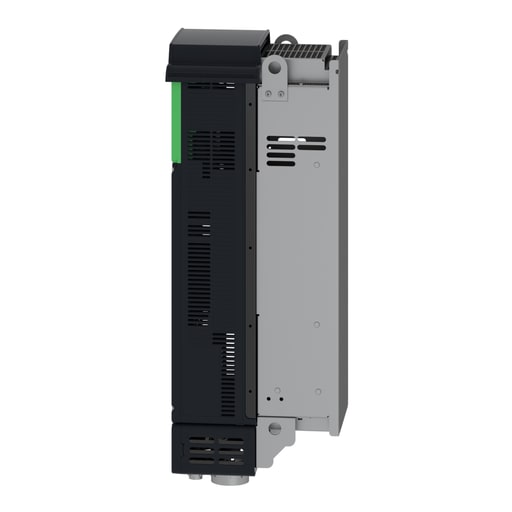

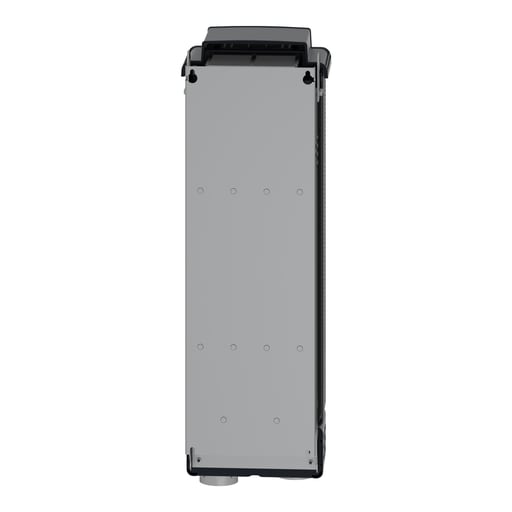

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ..Stop and Go..operation without additional costs. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%). It weighs 13.6kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 .) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: VW3A1104R10; VW3A3203; NSYPTDS4; VW3A1104R30; VW3A3204; VW3A1104R50; VW3A1112; VW3A3720; VW3A1104R100; VW3A3721; ZB5AZ905; TCSXCNAMUM3P; VW3A1115; VW3A3608; LU9GC3; VW3A3618; VW3A8306R03; VW3A3628; VW3A5504; VW3A8306R10; VW3A8306TF03; VW3A3627; VW3A8306R30; VW3A8306TF10; VW3A3607; VW3A8306RC; VW3A3619; VW3A3609; VW3A3725 - Cross Sell Products: LU9GC3; SRVEW1YDRV10; VW3CANCARR03; TSXCANCA50; TSXCANTDM4; VW3CANTAP2 - Spare Part Products: VX5VPS4001
