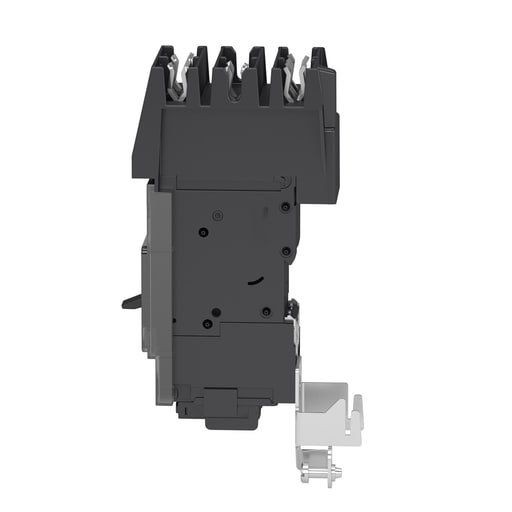

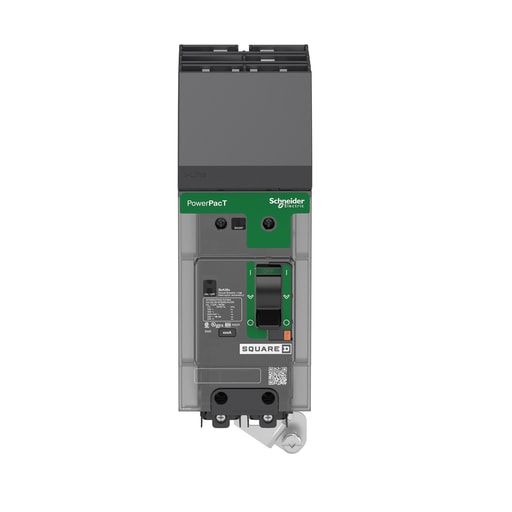

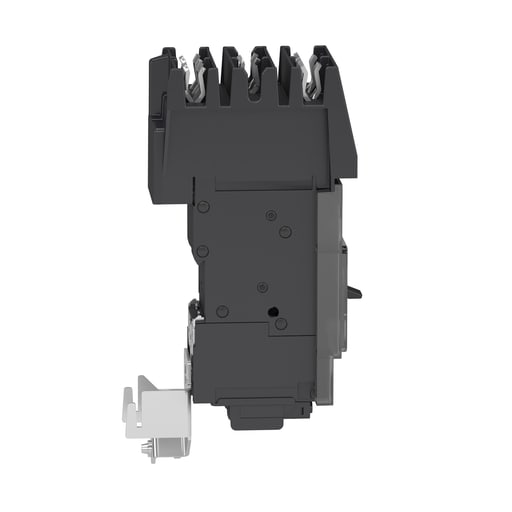

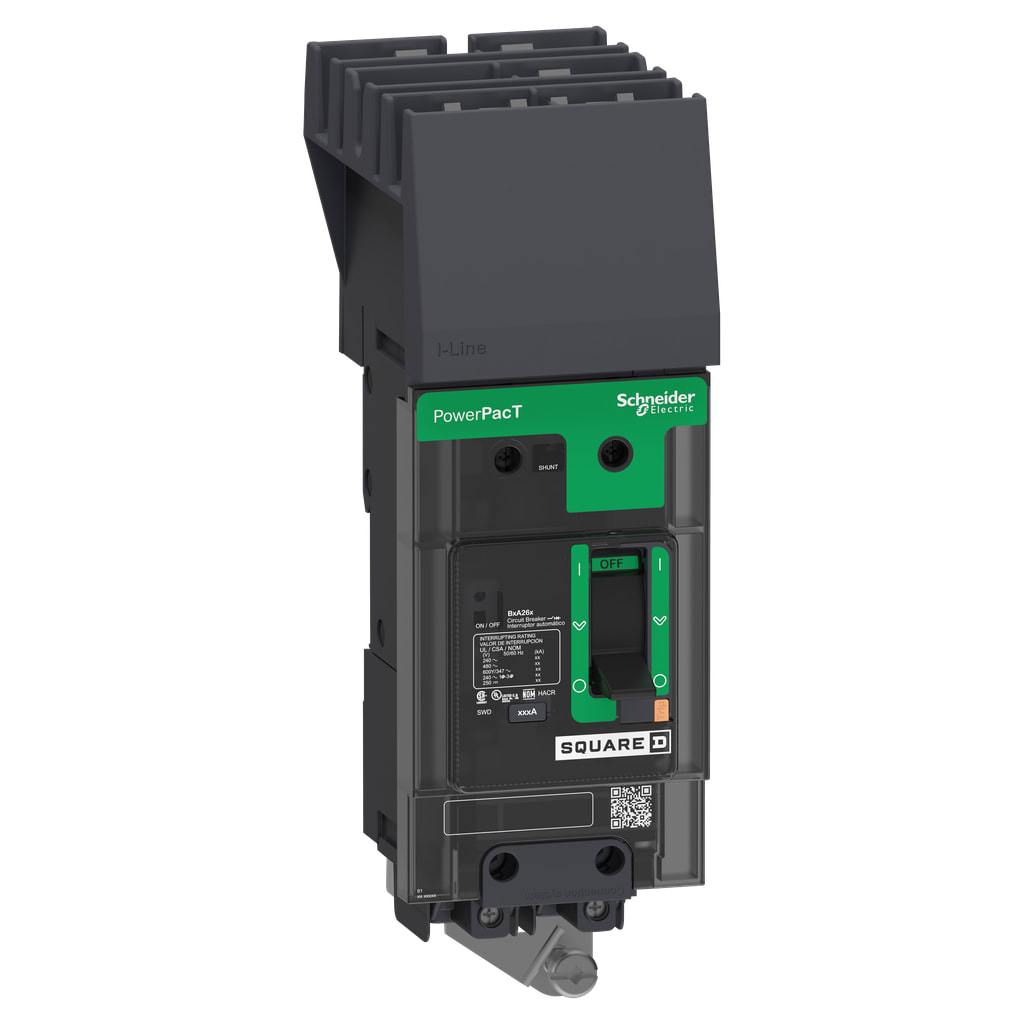

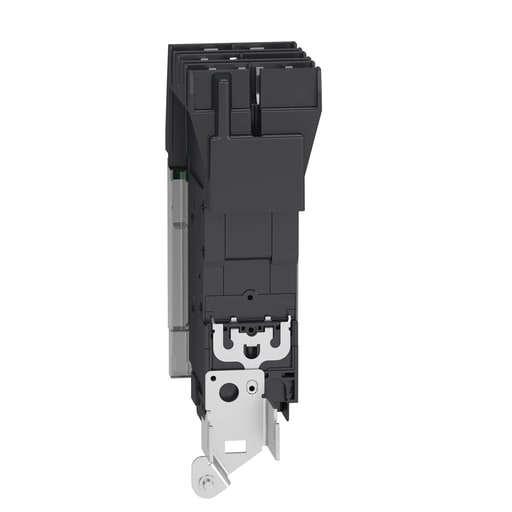

Square-D / Schneider - SQD BDA260351 PowerPact B Circuit B

Essential specifications

12-Digit UPC - 785901048138
Actuator - HANDLE AND PUSH-TO-TRIP BUTTON
Amperage - 35 Amp
Applications - FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION
Catalog Number - BDA260351

Packaging

1 ea

EAN

00785901048138

Part #

155664

Catalog #

BDA260351

Commercial reference

BDA260351

12-Digit UPC:

785901048138

Actuator:

HANDLE AND PUSH-TO-TRIP BUTTON

Amperage:

35 Amp

Applications:

FOR PROVIDING OVERLOAD AND SHORT CIRCUIT PROTECTION

Catalog Number:

BDA260351

Color:

Gray

Country of Origin:

USA

Depths:

89 mm

ERP_productname:

SQD BDA260351 POWERPACT B CIRCUIT BREAKER, 35A, 2P, 600Y/347V AC, 14KA AT 600Y/347 UL, I-LINE

Enclosure:

MOLDED CASE

Family Brand Name:

Schneider Electric

Frame:

B-FRAME

Heights:

137 mm

Interrupt Rating:

14, 18, 25 kAIC

Length:

2.98 Inch

Mounting Type:

I-Line

Number of Poles:

2 Pole

Sub Brand:

SQUARE D

Tc Connection:

LINE: I-LINE CONNECTION / LOAD: LUG TERMINAL

Trip Type:

THERMAL-MAGNETIC

Type:

POWERPACT B-FRAME

Voltage:

525 Volt

Widths:

54 mm

SoneparProductId:

SKU_US_192422823

PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLink™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 / 240 VAC50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction. This PowerPact B, 35 A, 2P, circuit breaker has a breaking capacity of 14kA@600Y/347VAC@50/60 Hz per UL 489 standards. This circuit breaker has a thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles@440V. This I-Line breaker has a presence of auxiliary contacts green signaling function. The I-Line lug can accept an AWG gauge AWG 14 / AWG 2/0, aluminium/copper. This breakers complies to UL, IEC, CCC, EAC, CSA, NOM standards. Powerpact B-Frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm (H),54 mm (W),89 mm (D) and a weight of 0.952kg. This breaker has a continuous current rating of 80% with an AB phase connection.
