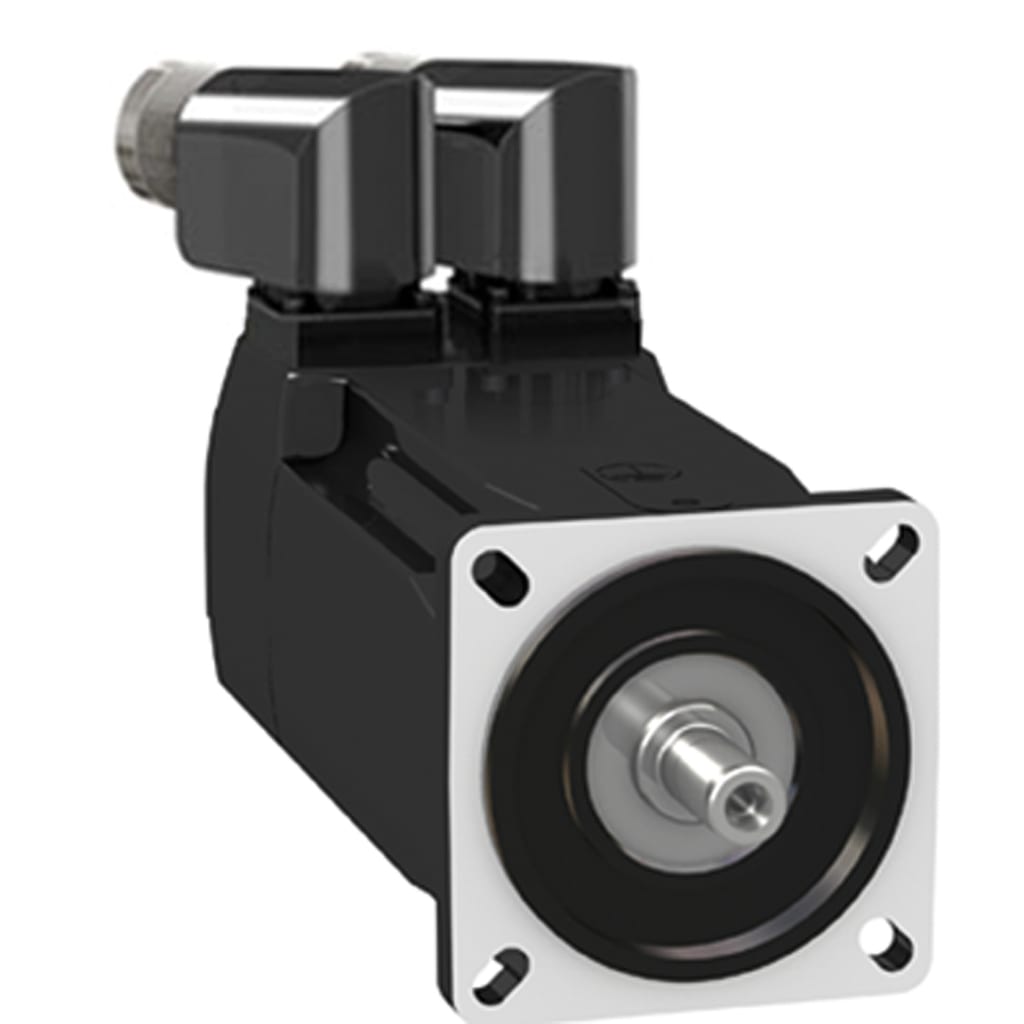

Square-D / Schneider - SQD BMH0701P06A2A servo motor BMH,

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 8000RPM and smooth shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (Diameter) x 23mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 122mm (Length) x 70mm (Width), centring collar dimensions are 2.5mm (Depth) x 60mm (Diameter) with 82mm circle diameter of the mounting hole. It weighs 1.6kg. This product is compatible with Lexium 32 servo drives. It supports international standard 70mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: VW3A7608R30; VW3M5101R100; VW3M8223R30; VW3A7608R07; VW3M3302; VW3M5101R15; VW3M8502R03; VW3A7601R30; VW3M3401; VW3M5101R150; VW3M8502R15; VW3A7602R07; VW3M3402; VW3M5101R200; VW3A7602R20; VW3M3403; VW3M5101R250; VW3M3501; VW3M5101R30; VW3A7603R07; VW3M4701; VW3M5101R50; VW3M5101R500; VW3M8801R30; VW3A7603R30; VW3M5101R750; VW3M8802R15; VW3A7604R07; VW3M8102R100; VW3M8802R30; VW3A7604R20; VW3M8102R15; VW3A7604R30; VW3M8102R150; VW3A7605R07; VW3M8102R200; VW3M8102R250; VW3M8102R30; VW3A7606R07; VW3M8102R50; VW3M8102R500; VW3A7606R30; VW3M8102R750; VW3A7607R07; VW3A7607R20; VW3A7607R30; VW3A7601R20; VW3A7601R07; VW3A7704; VW3A7705 - Cross Sell Products: GBK0600702F; LXM32CD12N4; GBK0800702F; LXM32MD72N4; GBK1200702F; LXM32MD30N4; LXM32AD12N4; LXM32AD18M2; LXM32AD30N4; LXM32SD30M2; LXM32AU60N4; LXM32AD72N4; GBX060005K; LXM32CD30N4; GBX060008K; LXM32MD30M2; GBX060012K; LXM32CU45M2; GBX080040K; LXM32MU60N4; GBX080020K; LXM32SU45M2; GBX060003K; LXM32AD30M2; GBX060015K; LXM32SD72N4; GBX080025K; LXM32SD18N4; GBX060004K; LXM32AU90M2; GBY060008K; LXM32MD18N4; GBX060009K; LXM32CU60N4; GBX060016K; LXM32MU45M2; GBY080040K; LXM32SD12N4; GBY060005K; LXM32SD18M2; GBX120100K; LXM32MD12N4; GBY060003K; LXM32SU60N4; GBY080020K; LXM32CU90M2; GBY060004K; LXM32MD18M2; GBX080032K; LXM32SU90M2; GBX120080K; LXM32MU90M2; GBY060012K; LXM32CD18M2; GBX120060K; LXM32CD18N4; LXM32CD30M2; LXM32CD72N4; LXM32AU45M2; LXM32AD18N4; LXM32SD30N4
