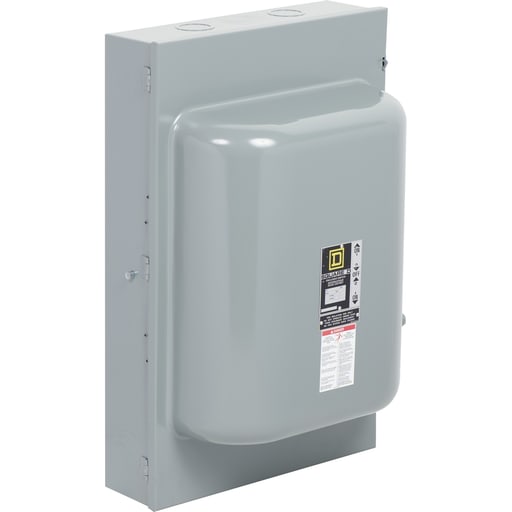

Square-D / Schneider - SQD C82344 Safety switch, double th

CopyCopy
Square-D / Schneider - SQD C82344 Safety switch, double th

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901995647

  • Amperage - 200 Amp

  • Catalog Number - C82344

  • Conductor Size - 6 AWG-300 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901995647

Part #

261119

Catalog #

C82344

Commercial reference

C82344

12-Digit UPC:

785901995647

Amperage:

200 Amp

Catalog Number:

C82344

Conductor Size:

6 AWG-300 kcmil

Country of Origin:

USA

Current:

200 Amp

Depths:

11-3/4 Inch

ERP_productname:

SQD C82344 SAFETY SWITCH, DOUBLE THROW, NON FUSIBLE, 200A, 480 VAC/250 VDC, 3 POLES, 15 HP, NEMA 1

Enclosure:

1

Enclosure Material:

Stainless Steel

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

30.88 Inch

Mounting Type:

Surface

NEMA Size:

1

Number of Poles:

3 Pole

Size:

11.75 in

Type:

Non-fusible disconnect;Double Throw Safety Switch

Voltage:

250 Volt

Widths:

23.88 in

SoneparProductId:

SKU_US_29489179

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch. Some key features are their quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. These double throw safety switches are able transfer a load from one power source to alternative power source economically. They adhere to the datasheet spectifications and have been certified by UL. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 92251
