Square-D / Schneider - SQD CU816F100PS Meter main, QO, CSE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901993933

  • Catalog Number - CU816F100PS

  • Color - Grey

  • Depths - 6.53 Inch

  • ERP_productname - SQD CU816F100PS METER MAIN, QO, CSED, RING TYPE, UNDERGROUND, 8 SPACE, 16 CIRCUIT, 100A, SURFACE, SOLAR READY, NO BYPASS

Packaging

  • 1 ea

EAN

00785901993933

Part #

324033

Catalog #

CU816F100PS

Commercial reference

CU816F100PS

12-Digit UPC:

785901993933

Catalog Number:

CU816F100PS

Color:

Grey

Depths:

6.53 Inch

ERP_productname:

SQD CU816F100PS METER MAIN, QO, CSED, RING TYPE, UNDERGROUND, 8 SPACE, 16 CIRCUIT, 100A, SURFACE, SOLAR READY, NO BYPASS

Family Brand Name:

Square D

Heights:

27.87 Inch

Mounting Type:

Surface

Number of Circuits:

16

Number of Phases:

1 Phase

Short Circuit Current:

22 kA

Widths:

15.04 in

Wire Size:

AWG 4...300 kcmil aluminium/copper)line side;AWG 8...AWG 2/0 aluminium/copper)service ground

SoneparProductId:

SKU_US_441841886

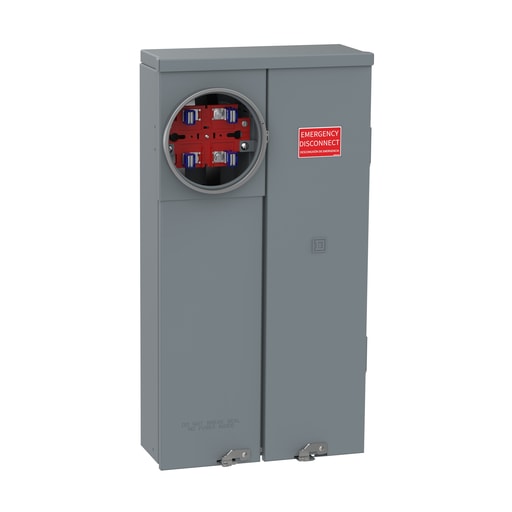

Solar ready combination service entrance devices are available with ring or ringless type meter socket designs. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These solar ready combination service entrance devices meet the California Title 24 requirements and are suitable for use with Photovoltaic system applications. This QO combination service entrance meter main unit has a ringed meter socket with no bypass. The main service disconnect is rated at 100 A and has a short circuit rating 22 kA. It has a QO plug on neutral load center that has 8 spaces and 16 circuits. This unit has a NEMA 3R enclosure that is surface mounted and underground service feed only. The line side lugs will accept 4 AWG to 300 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This QO combination service entrance meter main unit is UL Listed and meets EUSERC standards. Compatible Products: 5J; A200L; A250L; A300L; HEPD25; HEPD50; HEPD80; MMHB; QO115PCAFIC; QO120PDFC; QO230; QO250GFI; QO250PSPD; QOFPCP; QOM2100VH; QUCUGK; SRKUGMM
