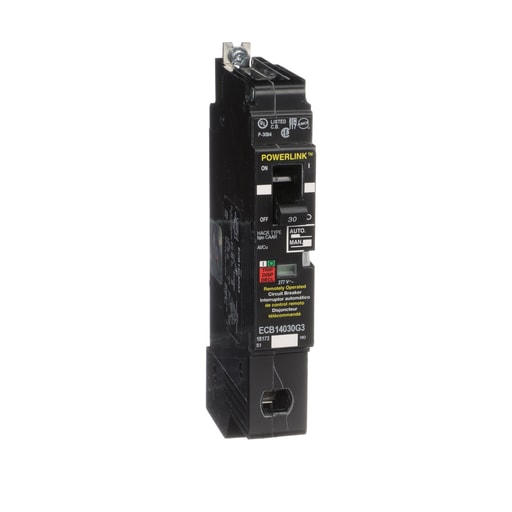

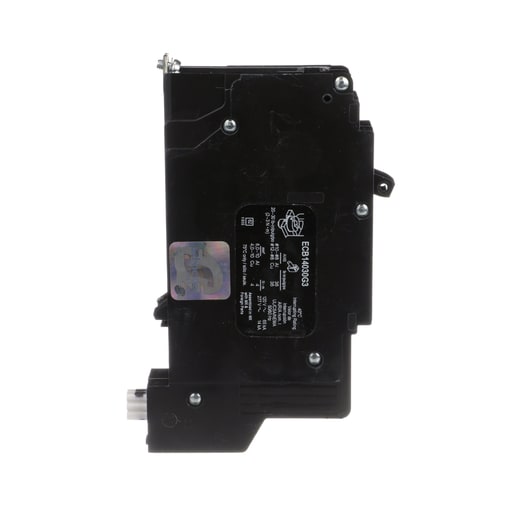

Square-D / Schneider - SQD ECB14030G3 Circuit Breaker, Pow

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901300151

  • Amperage - 30 Amp

  • Applications - HID RATED-SWITCHING DUTY RATED-HACR RATED

  • Catalog Number - ECB14030G3

  • Circuit Breaker Type - ECB-G3

Packaging

  • 1 ea

EAN

00785901300151

Part #

227402

Catalog #

ECB14030G3

Commercial reference

ECB14030G3

12-Digit UPC:

785901300151

Amperage:

30 Amp

Applications:

HID RATED-SWITCHING DUTY RATED-HACR RATED

Catalog Number:

ECB14030G3

Circuit Breaker Type:

ECB-G3

Country of Origin:

Mexico

ERP_productname:

SQD ECB14030G3 MOLDED CASE CIRCUIT BREAKER 480V 30AMP

Family Brand Name:

Square D

Interrupt Rating:

14, 65 kAIC

Mounting Type:

Bolt-On

Number of Poles:

1 Pole

Sub Brand:

G3

Tc Connection:

AWG 12...AWG 8 ALUMINIUM-AWG 10...AWG 8 COPPER,BOLTED CONNECTION

Trip Type:

THERMAL-MAGNETIC, STANDARD, LI

Type:

CIRCUIT BREAKER,MOTOR FOR CIRCUIT-BREAKER 24 V DC

Voltage:

277 Volt

SoneparProductId:

SKU_US_31857152

PowerLink™ circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for PowerLink™ Intelligent panelboard. They can be configured to automatically or manually reset once tripped using a bimetallic strip. This circuit breaker is HACR rated to a current capacity of 30 amperages, allowing for it be ideally used in congruence with HVAC systems. Certified by the Underwriters Laboratory to meet the designed specifications. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
