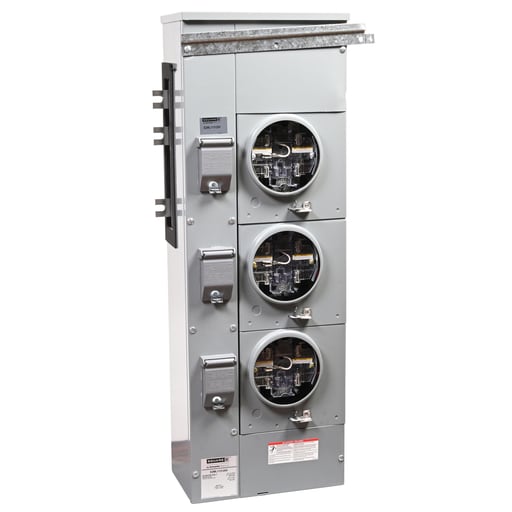

Square-D / Schneider - SQD EZML113125X Branch unit, EZ Met

Essential specifications

12-Digit UPC - 785901209379
Catalog Number - EZML113125X
Current - 125 Amp
Depths - 8.95 Inch
ERP_productname - SQD EZML113125X BRANCH UNIT, EZ METER-PAK, 125A, 3 SOCKETS, 120/240 VAC, LEVER BYPASS, RINGLESS, 1200A AL BUSBAR

Packaging

1 ea

EAN

00785901209379

Part #

174656

Catalog #

EZML113125X

Commercial reference

EZML113125X

12-Digit UPC:

785901209379

Catalog Number:

EZML113125X

Current:

125 Amp

Depths:

8.95 Inch

ERP_productname:

SQD EZML113125X BRANCH UNIT, EZ METER-PAK, 125A, 3 SOCKETS, 120/240 VAC, LEVER BYPASS, RINGLESS, 1200A AL BUSBAR

Enclosure:

Steel

Enclosure Material:

Steel

Enclosure Rating:

Family Brand Name:

Square D

Heights:

45 Inch

Material:

Aluminium/copper: Busbar

Mounting Type:

Surface

Number of Phases:

1 Phase

Size:

45 in

Type:

Ringless;Meter Center Branch Unit

Widths:

15.38 in

SoneparProductId:

SKU_US_316027261

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 3 five jaw sockets for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
