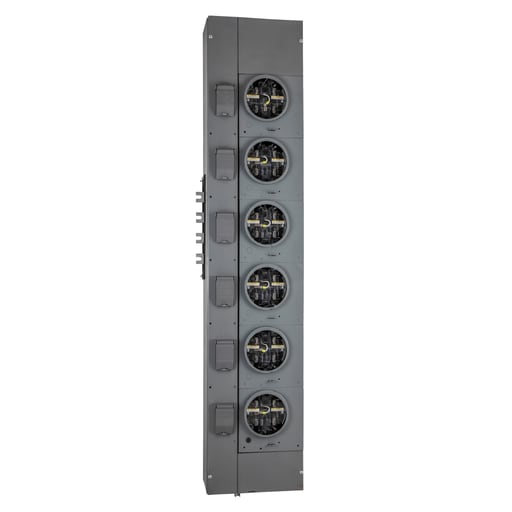

Square-D / Schneider - SQD EZML116125 Branch unit, EZ Mete

Essential specifications

12-Digit UPC - 785901068167
Catalog Number - EZML116125
Country of Origin - Mexico
Current - 125 Amp
Depths - 8.95 Inch

Packaging

1 ea

EAN

00785901068167

Part #

127117

Catalog #

EZML116125

Commercial reference

EZML116125

12-Digit UPC:

785901068167

Catalog Number:

EZML116125

Country of Origin:

Mexico

Current:

125 Amp

Depths:

8.95 Inch

ERP_productname:

SQD EZML116125 MTRING EZML BRANCH RINGLESS 6 POS 125A

Enclosure:

Enclosure Rating:

Family Brand Name:

Square D

Heights:

75 Inch

Material:

Aluminium: Busbar

Mounting Type:

Surface

NEMA Size:

Number of Phases:

1 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

75 in

Type:

Ringless;Meter Center Branch Unit

Widths:

15.38 in

SoneparProductId:

SKU_US_126166235

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 6 five jaw sockets for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
