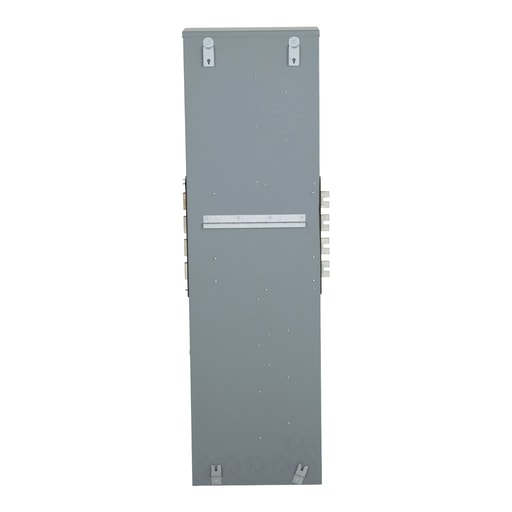

Square-D / Schneider - SQD EZML314125 Branch unit, EZ Mete

Essential specifications

12-Digit UPC - 785901068181
Catalog Number - EZML314125
Country of Origin - USA
Current - 125 Amp
Depths - 8.95 Inch

Packaging

1 ea

EAN

00785901068181

Part #

182445

Catalog #

EZML314125

Commercial reference

EZML314125

12-Digit UPC:

785901068181

Catalog Number:

EZML314125

Country of Origin:

USA

Current:

125 Amp

Depths:

8.95 Inch

ERP_productname:

SQD EZML314125 MTRING EZML BRANCH RINGLESS 4 POS 125A 2

Enclosure:

Enclosure Rating:

Family Brand Name:

Square D

Heights:

55 Inch

Material:

Aluminium: Busbar

Mounting Type:

Surface

NEMA Size:

Number of Phases:

1,3 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

55 in

Type:

Ringless;Meter Center Branch Unit

Widths:

15.38 in

SoneparProductId:

SKU_US_133692796

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 4 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
