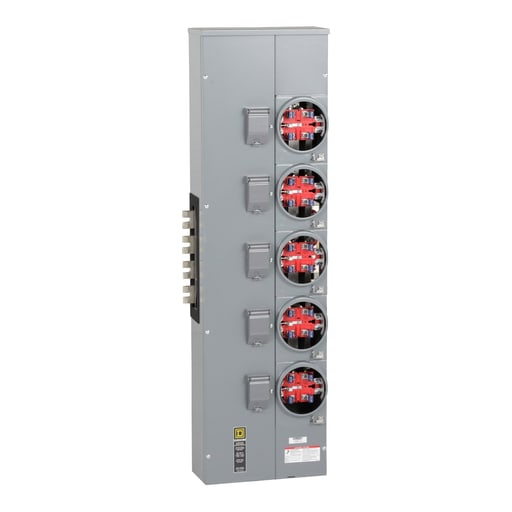

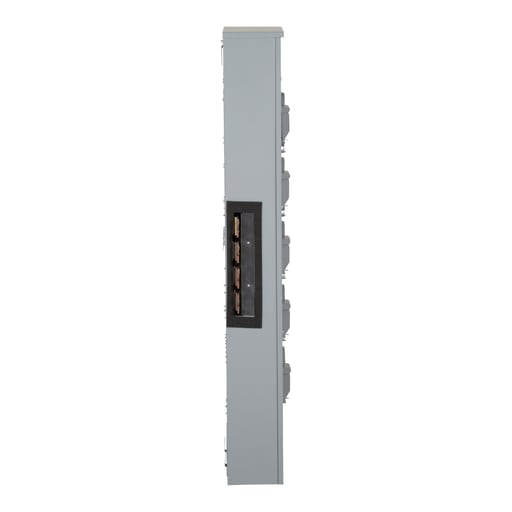

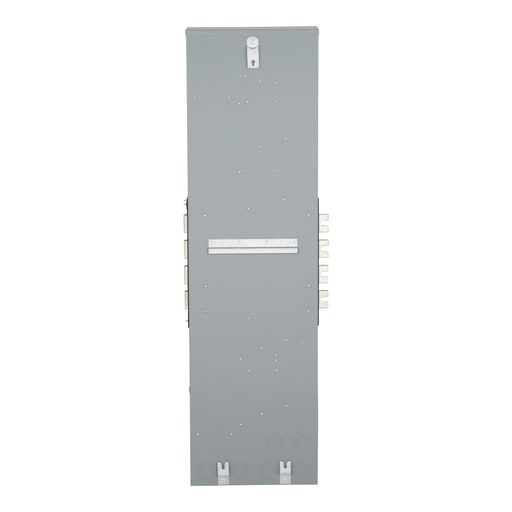

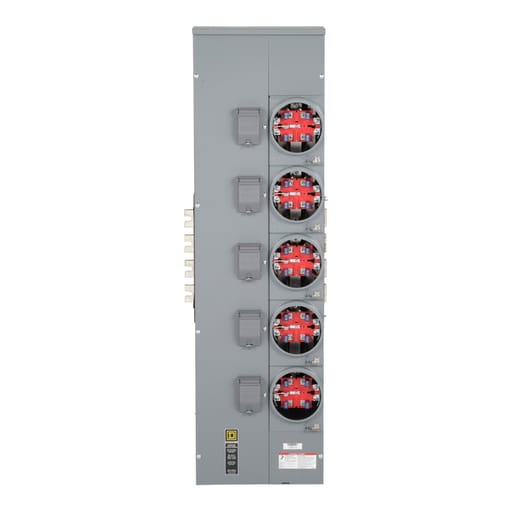

Square-D / Schneider - SQD EZMR315225 Branch unit, EZ Mete

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901333050

  • Amperage - 225 Amp

  • Catalog Number - EZMR315225

  • Country of Origin - Mexico

  • Current - 225 Amp

Packaging

  • 1 ea

EAN

00785901333050

Part #

444823

Catalog #

EZMR315225

Commercial reference

EZMR315225

12-Digit UPC:

785901333050

Amperage:

225 Amp

Catalog Number:

EZMR315225

Country of Origin:

Mexico

Current:

225 Amp

Depths:

205 mm

ERP_productname:

SQD EZMR315225 BRANCH UNIT, EZ METER-PAK, 225A, 5 X 5 JAW SOCKETS, 208Y/120VAC, NO BYPASS, RINGLESS, 1200A AL/CU BUSBAR

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Family Brand Name:

Square D

Heights:

1549 mm

Material:

Aluminium/copper: Busbar

Mounting Type:

Surface

NEMA Size:

3R

Number of Phases:

1,3 Phase

Size:

60.98 in

Sub Brand:

METER-PAK

Type:

Ringless;Meter Center Branch Unit

Voltage:

120/208 VAC

Widths:

441 mm

SoneparProductId:

SKU_US_30258341

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 5 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 29007; 5J; EZM125QOA; EZM3CORNER; EZM3ELBOW; EZM3EXT; EZM3EXT6; EZM3TRANL; EZM3TRANR; EZM72MC; EZMCAP; EZMSCAP; RSG4
