Square-D / Schneider - SQD GS2EEU3 Disconnect Sw 30 Amp Cl
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901970637
Amperage - 30 Amp AT 40 .C
Applications - GS2E
Catalog Number - GS2EEU3
Country of Origin - France
Packaging
1 ea
EAN
00785901970637
Part #
149792
Catalog #
GS2EEU3
Commercial reference
GS2EEU3
12-Digit UPC:
785901970637
Amperage:
30 Amp AT 40 .C
Applications:
GS2E
Catalog Number:
GS2EEU3
Country of Origin:
France
Depths:
3.9 Inch
ERP_productname:
SQD GS2EEU3 DISCONNECT SW 30 AMP CLASS CC
Enclosure:
IP20 WITH TERMINAL COVER CONFORMING TO IEC 60529
Family Brand Name:
TELEMECANIQUE
Heights:
5.31 Inch
Sub Brand:
TESYS
Type:
GS2E,SWITCH-DISCONNECTOR-FUSE
Widths:
4.92 in
SoneparProductId:
SKU_US_30108070

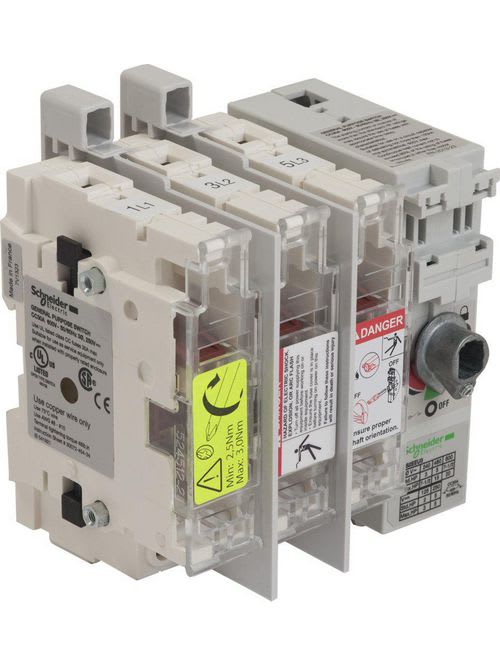

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/750V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
