Square-D / Schneider - SQD GV2APN01 Extended rotary handle

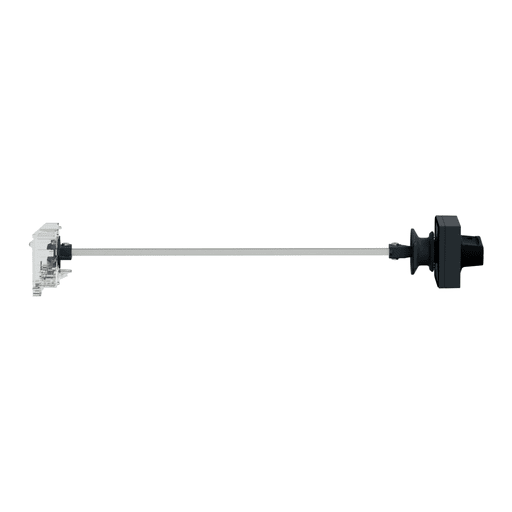

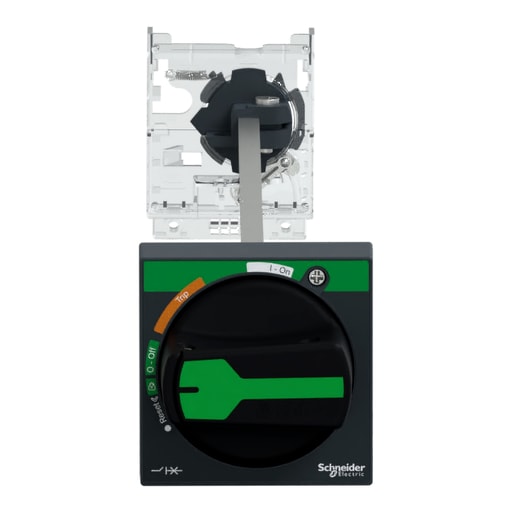

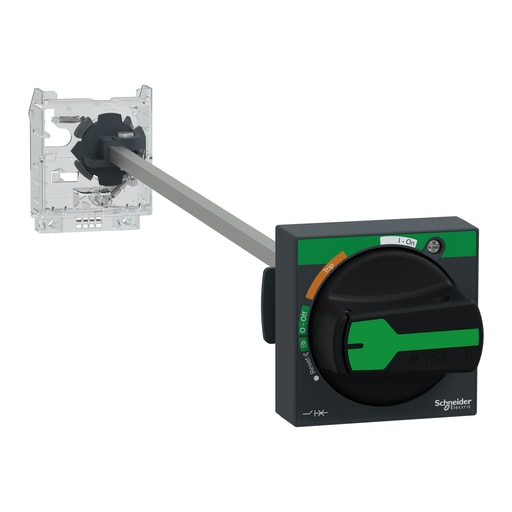

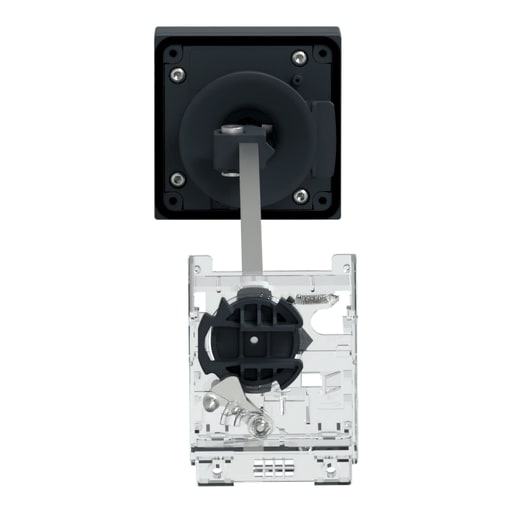

TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: GV2V03; GVAPL01 - Cross Sell Products: GV2P08; GV2P10; GV2P14; GV2P07; GV2P16; GV2P06; GV2P20; GV2P32; GV2P05; GV2P22; GV2L14; GV2P21; GV2P04; GV2L08; GV2L16; GV2L10; GV2L22; GV2L20; GV2L07; GV2L32; GV2P03; GV2P02; GV2P01; GV2L06; GV2L05; GV2L03; GV2L04
