Square-D / Schneider - SQD GV3APN02 Extended rotary handle

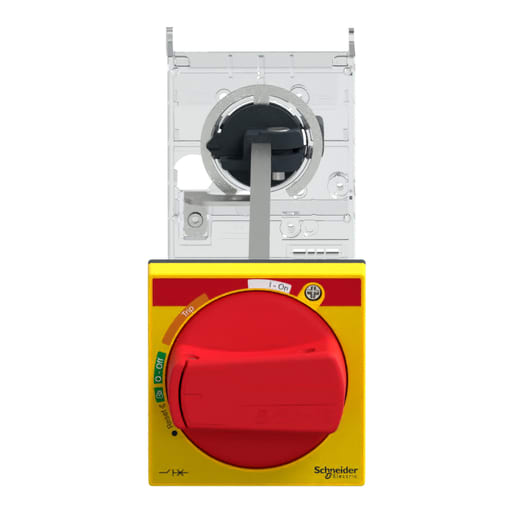

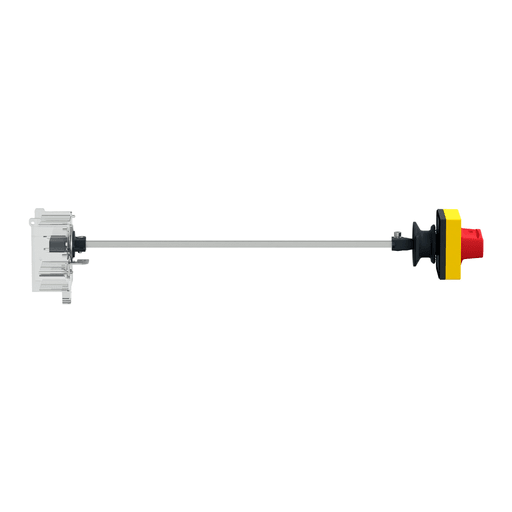

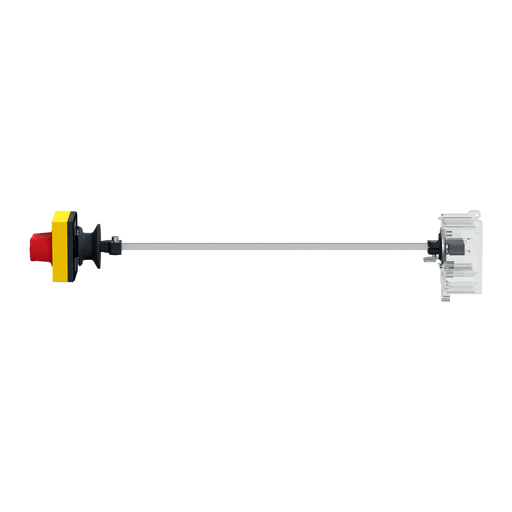

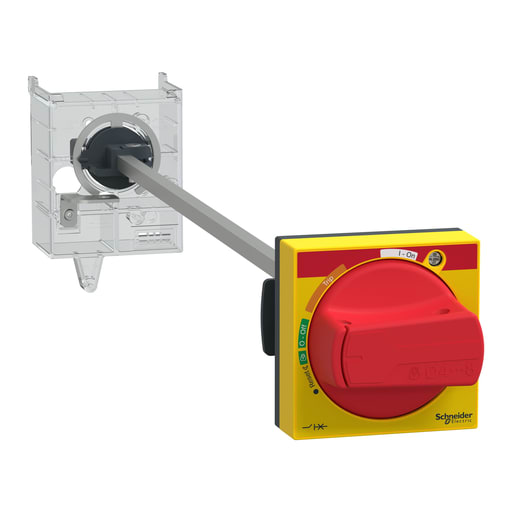

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GV2V03; GVAPL01 - Cross Sell Products: GV3P40; GV3P50; GV3P65; GV3P80; GV3P32; GV3P73; GV3P25; GV3L40; GV3L50; GV3L65; GV3P18; GV3P13; GV3L32; GV3L25; GV3L73
