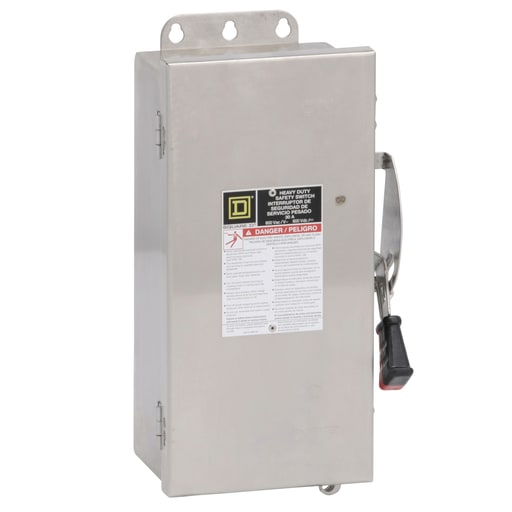

Square-D / Schneider - SQD H361DSEI Safety switch, heavy d

12-Digit UPC:

785901132509

Amperage:

30 Amp

Applications:

HEAVY DUTY

Catalog Number:

H361DSEI

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

USA

Current:

30 Amp

Depths:

5.11 Inch

Disconnect Type:

Fusible disconnect NULL

ERP_productname:

SQD H361DSEI SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 30A, 3 POLES, 20 HP, 20 HP, 600 VAC/DC, NEMA 4, 4X, 5, 304 STEEL, INTERLOCK KIT

Enclosure:

4,4X,5

Enclosure Material:

Stainless Steel

Enclosure Rating:

4, 4X, 5

Family Brand Name:

Square D

Heights:

14.93 Inch

Material:

Stainless Steel

Mounting Type:

Surface

NEMA Size:

4,4X,5

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

14.93 IN,5.11 IN,8.67 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER

Type:

SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

8.67 in

Wire Size:

AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_32279464
