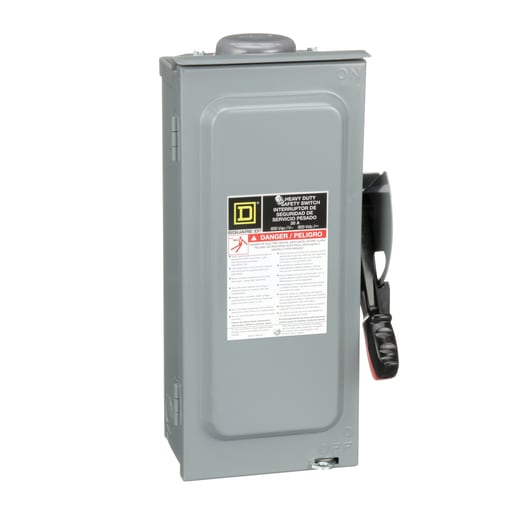

Square-D / Schneider - SQD H361RBCLR Safety switch, heavy

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901265399

  • Amperage - 30 Amp

  • Applications - HEAVY DUTY

  • Catalog Number - H361RBCLR

  • Conductor Size - 12-6 AWG (AL)/14-6 AWG (CU)

Packaging

  • 1 ea

EAN

00785901265399

Part #

213414

Catalog #

H361RBCLR

Commercial reference

H361RBCLR

12-Digit UPC:

785901265399

Amperage:

30 Amp

Applications:

HEAVY DUTY

Catalog Number:

H361RBCLR

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

USA

Current:

30 Amp

Depths:

4.86 Inch

Disconnect Type:

Fusible disconnect NULL

ERP_productname:

SQD H361RBCLR SW FUSIBLE HD 30A 3P NEMA3R/CLASS R KIT

Enclosure:

3R

Enclosure Material:

Stainless Steel

Enclosure Rating:

3R

Family Brand Name:

Square D

Heights:

14.88 Inch

Mounting Type:

Surface

NEMA Size:

3R

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

14.88 IN,4.86 IN,7.55 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER

Type:

SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

7.55 in

Wire Size:

AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_29647573

Safety switch, heavy duty, fusible, 30A, 3 poles, 20 hp, 20 hp, 600 VAC/DC, NEMA 3R, bolt-on hub, class R fuse kit
